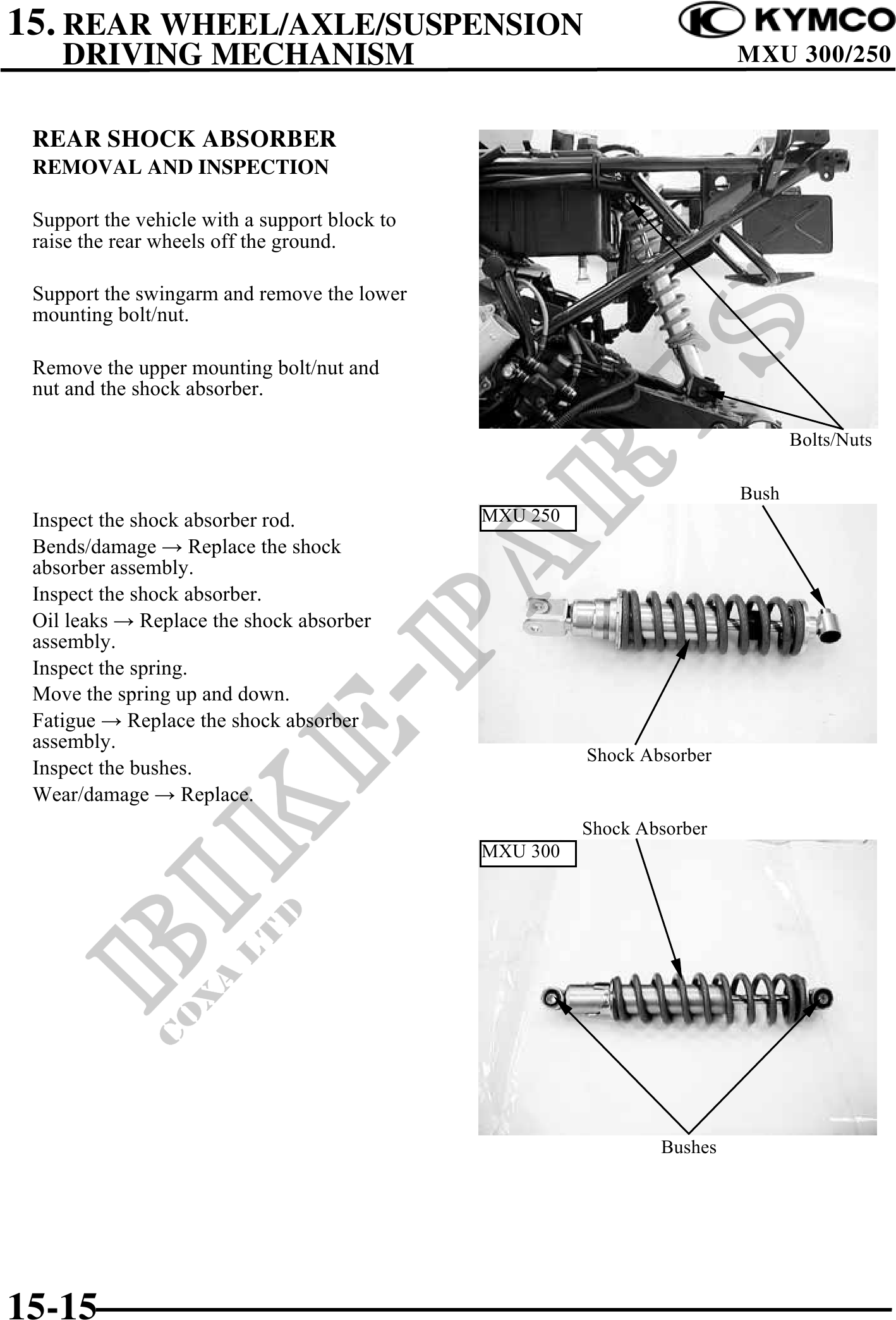

          15. REAR WHEEL/AXLE/SUSPENSION
    DRIVING MECHANISM                                                     MXU 300/250


 REAR SHOCK ABSORBER
 REMOVAL AND INSPECTION

 Support the vehicle with a support block to
 raise the rear wheels off the ground.

 Support the swingarm and remove the lower
 mounting bolt/nut.

 Remove the upper mounting bolt/nut and
 nut and the shock absorber.

                                                                                 Bolts/Nuts

                                                                          Bush
 Inspect the shock absorber rod.               MXU 250
 Bends/damage  Replace the shock
 absorber assembly.
 Inspect the shock absorber.
 Oil leaks  Replace the shock absorber
 assembly.
 Inspect the spring.
 Move the spring up and down.
 Fatigue  Replace the shock absorber
 assembly.
                                                         Shock Absorber
 Inspect the bushes.
 Wear/damage  Replace.
                                                         Shock Absorber
                                               MXU 300




                                                                 Bushes




15-15
