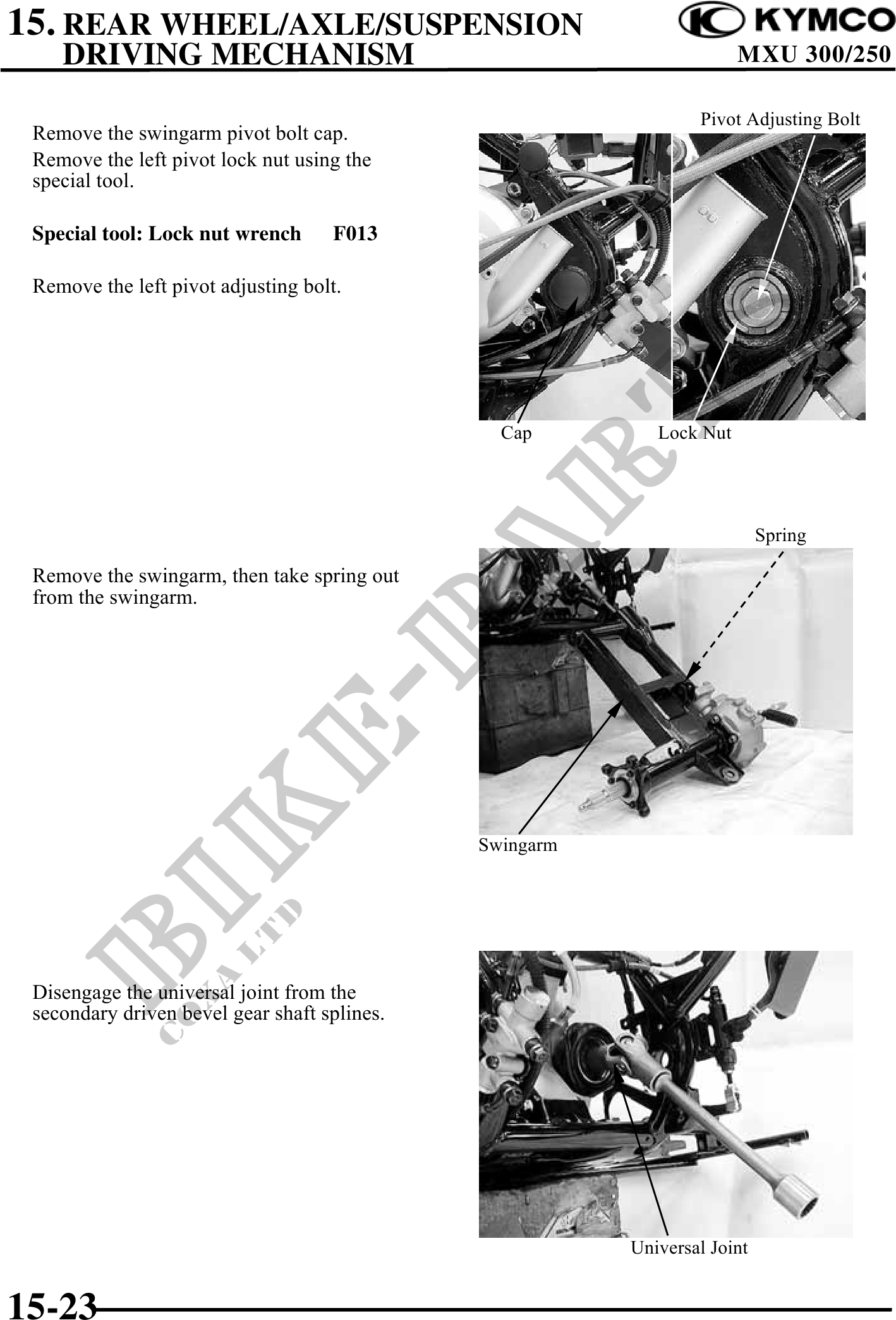

          15. REAR WHEEL/AXLE/SUSPENSION
    DRIVING MECHANISM                                                  MXU 300/250

                                                                 Pivot Adjusting Bolt
 Remove the swingarm pivot bolt cap.
 Remove the left pivot lock nut using the
 special tool.

 Special tool: Lock nut wrench      F013

 Remove the left pivot adjusting bolt.




                                                Cap         Lock Nut




                                                                           Spring

 Remove the swingarm, then take spring out
 from the swingarm.




                                              Swingarm




 Disengage the universal joint from the
 secondary driven bevel gear shaft splines.




                                                         Universal Joint
