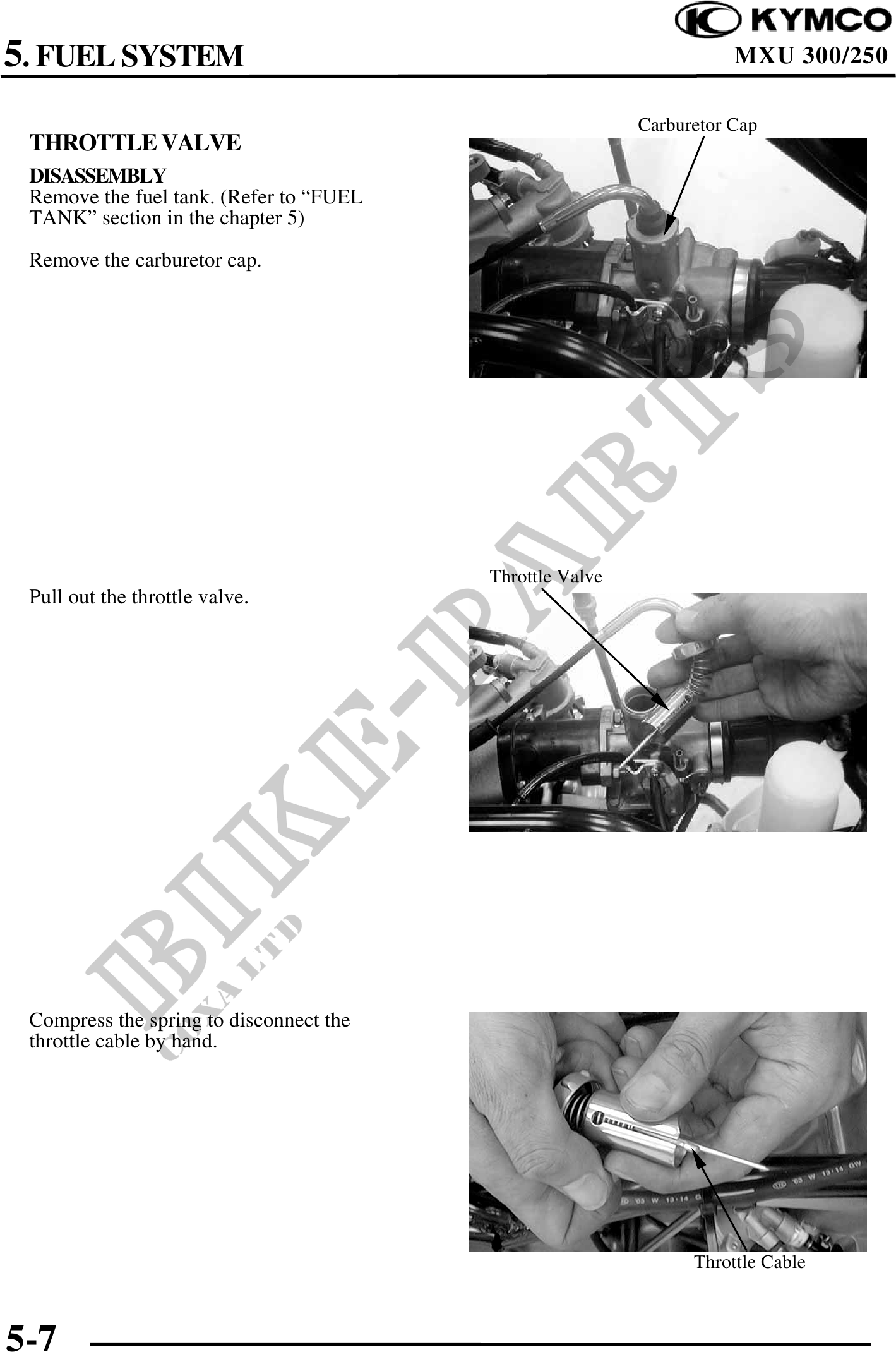

          5. FUEL SYSTEM                                                       MXU 300/250

                                                          Carburetor Cap
 THROTTLE VALVE
 DISASSEMBLY
 Remove the fuel tank. (Refer to "FUEL
 TANK" section in the chapter 5)

 Remove the carburetor cap.




                                         Throttle Valve
 Pull out the throttle valve.




 Compress the spring to disconnect the
 throttle cable by hand.




                                                                Throttle Cable



5-7
