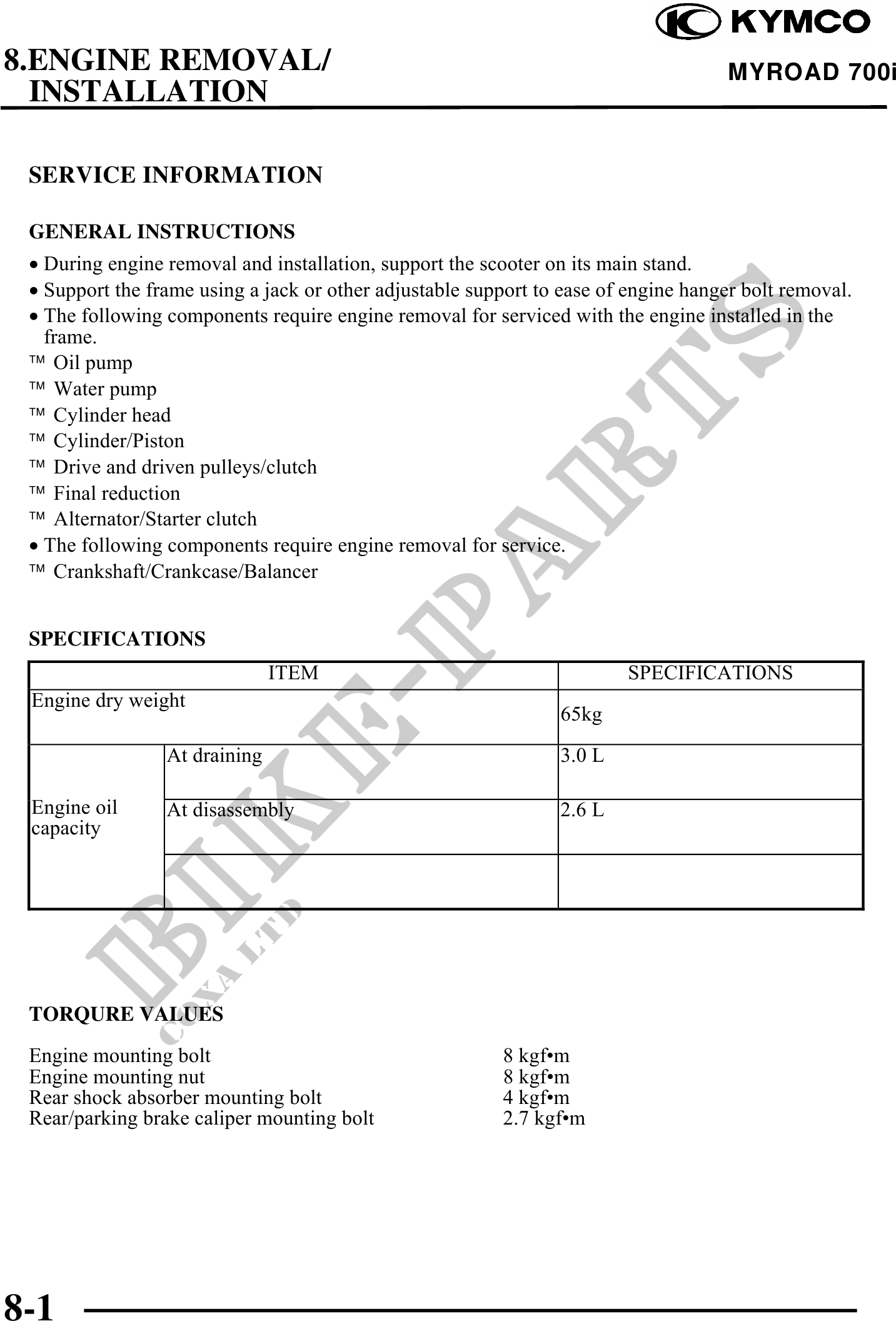

8.ENGINE REMOVAL/ MYROAD 700i
INSTALLATION
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· During engine removal and installation, support the scooter on its main stand.
· Support the frame using a jack or other adjustable support to ease of engine hanger bolt removal.
· The following components require engine removal for serviced with the engine installed in the
frame.
TM Oil pump
TM Water pump
TM Cylinder head
TM Cylinder/Piston
TM Drive and driven pulleys/clutch
TM Final reduction
TM Alternator/Starter clutch
· The following components require engine removal for service.
TM Crankshaft/Crankcase/Balancer
SPECIFICATIONS
ITEM SPECIFICATIONS
Engine dry weight
65kg
At draining 3.0 L
Engine oil At disassembly 2.6 L
capacity
TORQURE VALUES
Engine mounting bolt 8 kgf·m
Engine mounting nut 8 kgf·m
Rear shock absorber mounting bolt 4 kgf·m
Rear/parking brake caliper mounting bolt 2.7 kgf·m
8-1
