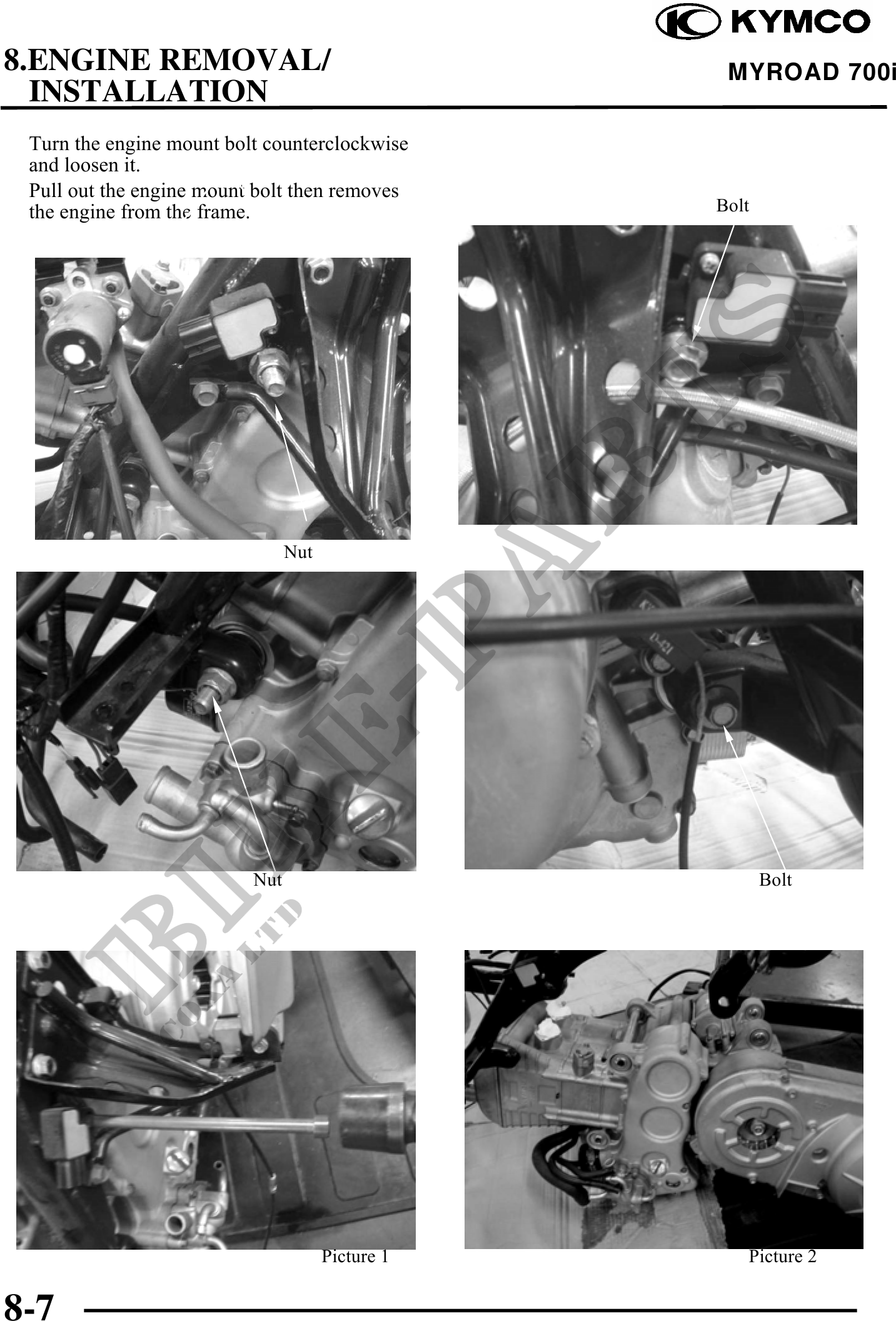

          8.ENGINE REMOVAL/                                  MYROAD 700i
  INSTALLATION
 Turn the engine mount bolt counterclockwise
 and loosen it.
 Pull out the engine mount bolt then removes
 the engine from the frame.                       Bolt




                                Nut




                          Nut                            Bolt




                                      Picture 1      Picture 2


8-7
