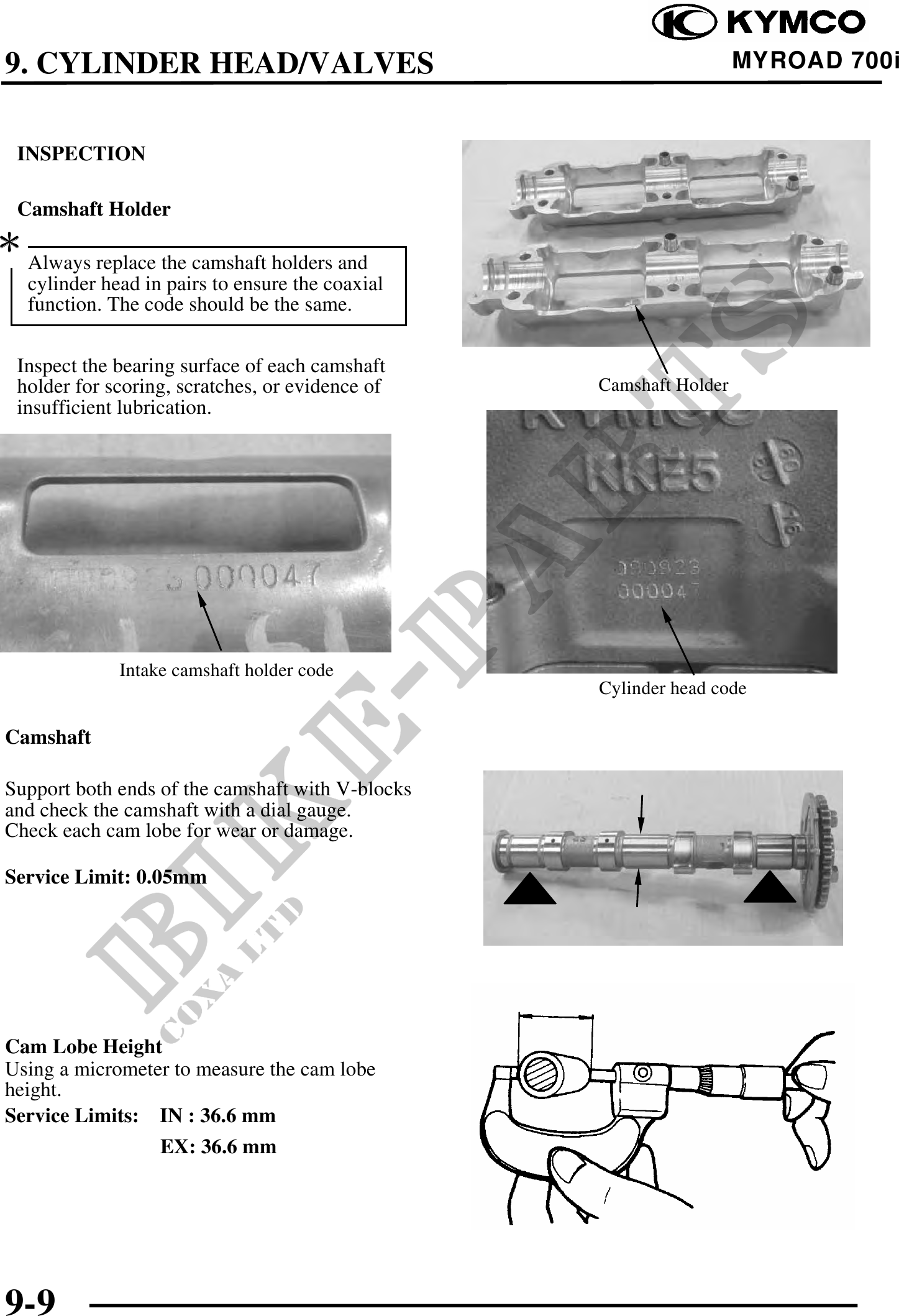

9. CYLINDER HEAD/VALVES MYROAD 700i
INSPECTION
Camshaft Holder
Always replace the camshaft holders and
cylinder head in pairs to ensure the coaxial
function. The code should be the same.
Inspect the bearing surface of each camshaft
holder for scoring, scratches, or evidence of Camshaft Holder
insufficient lubrication.
Intake camshaft holder code
Cylinder head code
Camshaft
Support both ends of the camshaft with V-blocks
and check the camshaft with a dial gauge.
Check each cam lobe for wear or damage.
Service Limit: 0.05mm
Cam Lobe Height
Using a micrometer to measure the cam lobe
height.
Service Limits: IN : 36.6 mm
EX: 36.6 mm
9-9
