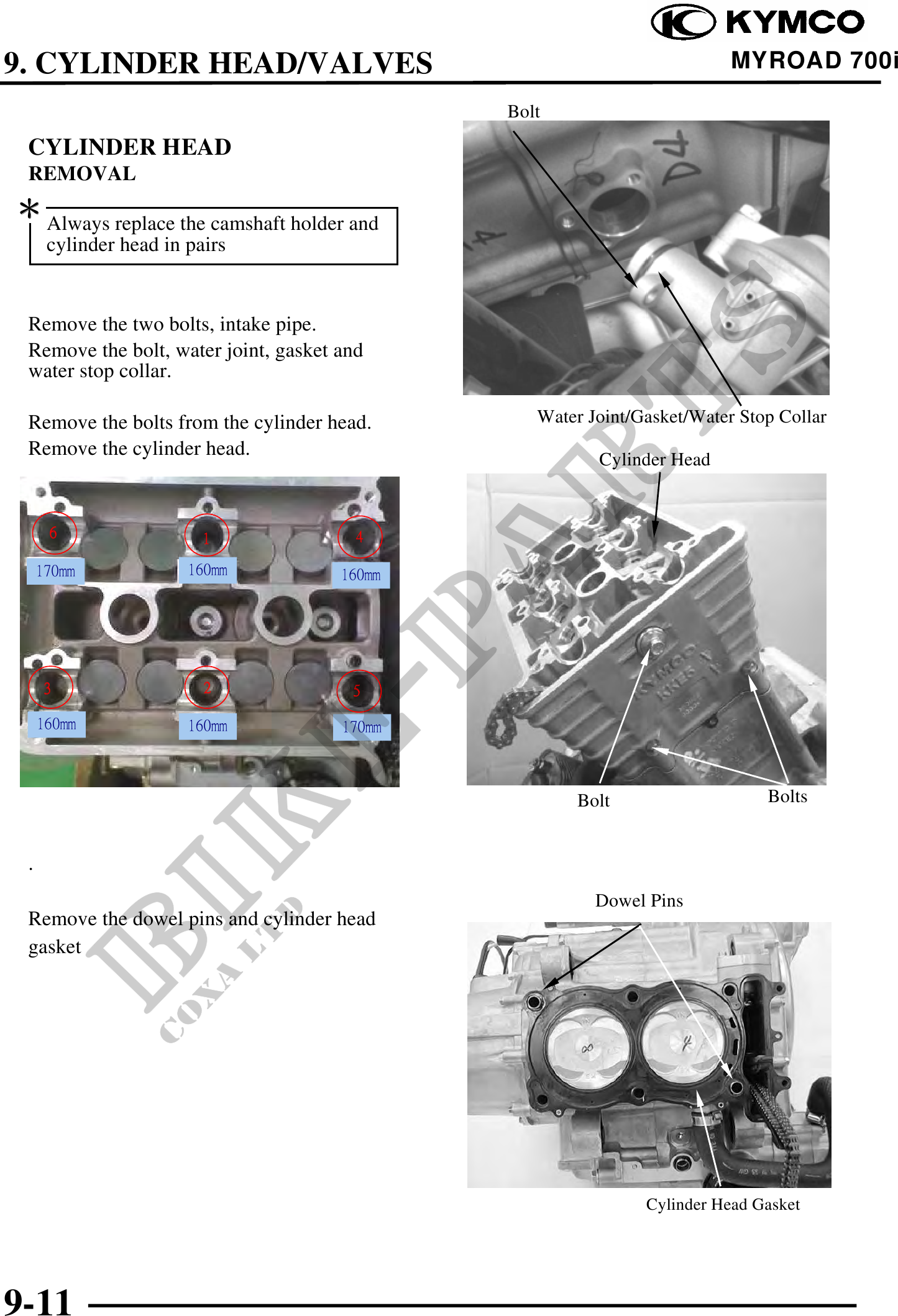

9. CYLINDER HEAD/VALVES MYROAD 700i
Bolt
CYLINDER HEAD
REMOVAL
Always replace the camshaft holder and
cylinder head in pairs
Remove the two bolts, intake pipe.
Remove the bolt, water joint, gasket and
water stop collar.
Remove the bolts from the cylinder head. Water Joint/Gasket/Water Stop Collar
Remove the cylinder head.
Cylinder Head
6 1 4
170mm 160mm 160mm
3 2 5
160mm 160mm 170mm
Bolt Bolts
.
Dowel Pins
Remove the dowel pins and cylinder head
gasket
Cylinder Head Gasket
9-11
