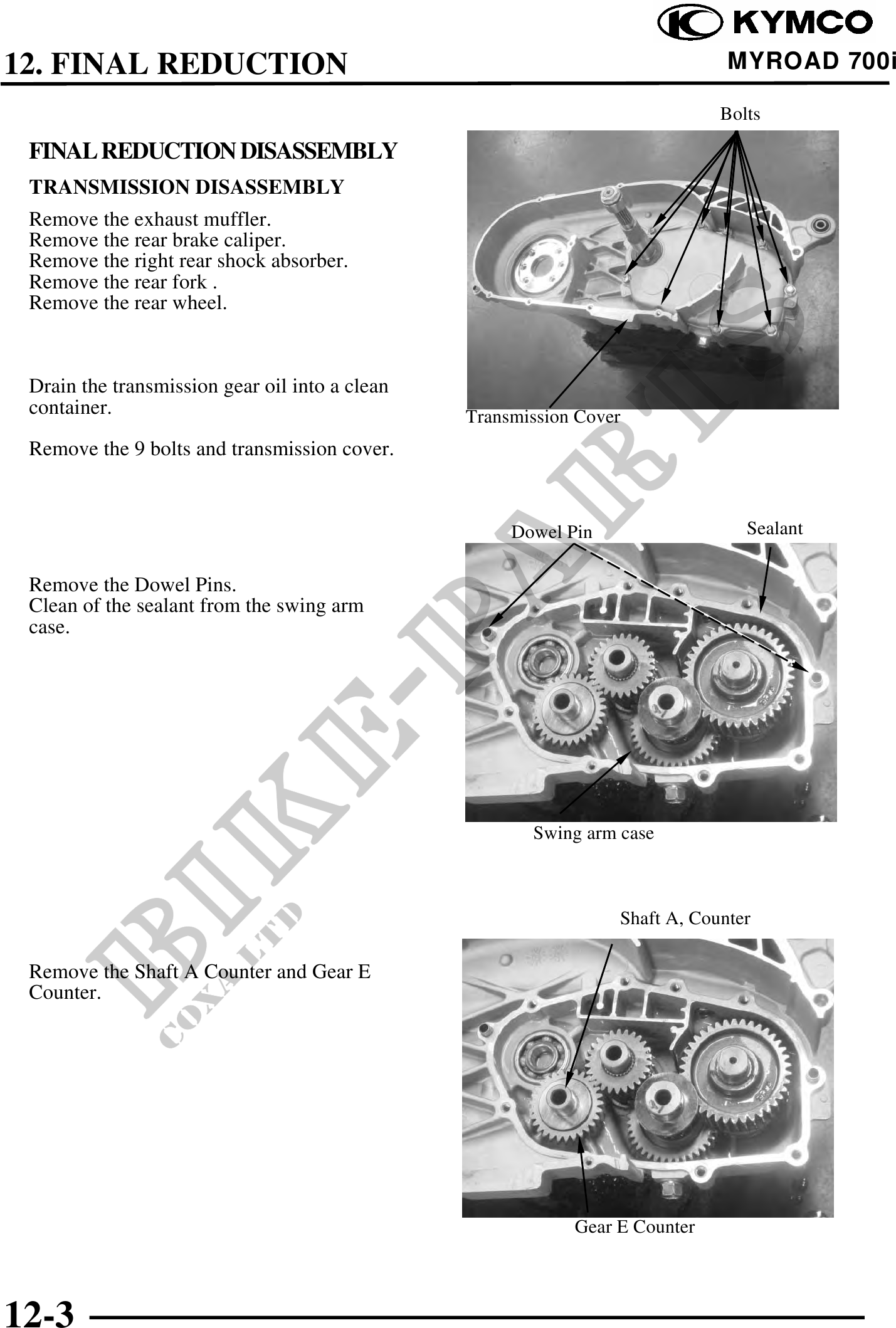

12. FINAL REDUCTION MYROAD 700i
Bolts
FINAL REDUCTION DISASSEMBLY
TRANSMISSION DISASSEMBLY
Remove the exhaust muffler.
Remove the rear brake caliper.
Remove the right rear shock absorber.
Remove the rear fork .
Remove the rear wheel.
Drain the transmission gear oil into a clean
container. Transmission Cover
Remove the 9 bolts and transmission cover.
Dowel Pin Sealant
Remove the Dowel Pins.
Clean of the sealant from the swing arm
case.
Swing arm case
Shaft A, Counter
Remove the Shaft A Counter and Gear E
Counter.
Gear E Counter
12-3
