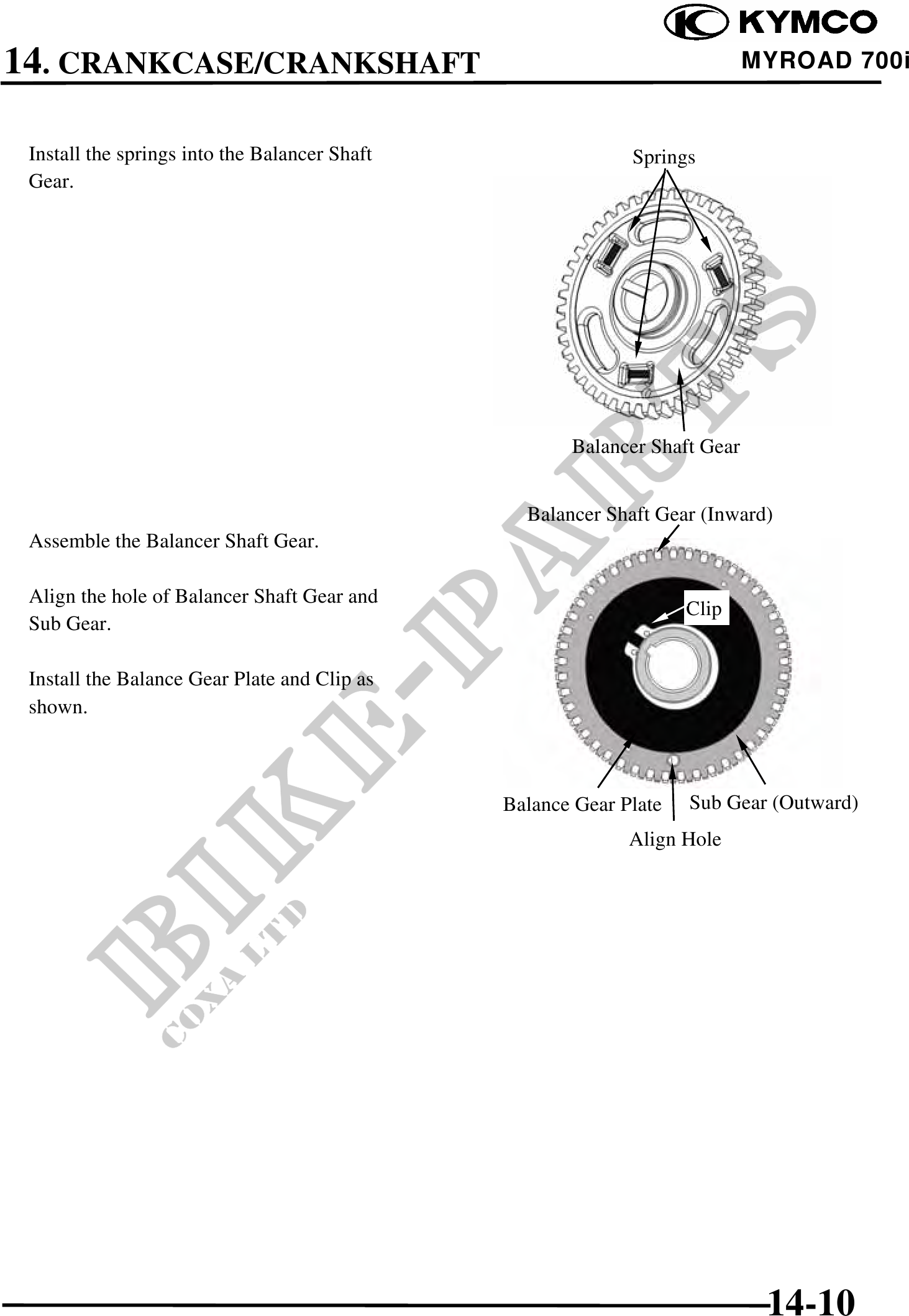

          14. CRANKCASE/CRANKSHAFT                                                    MYROAD 700i


 Install the springs into the Balancer Shaft                 Springs
 Gear.




                                                      Balancer Shaft Gear


                                                 Balancer Shaft Gear (Inward)
 Assemble the Balancer Shaft Gear.

 Align the hole of Balancer Shaft Gear and
                                                                    Clip
 Sub Gear.

 Install the Balance Gear Plate and Clip as
 shown.



                                               Balance Gear Plate   Sub Gear (Outward)
                                                             Align Hole
