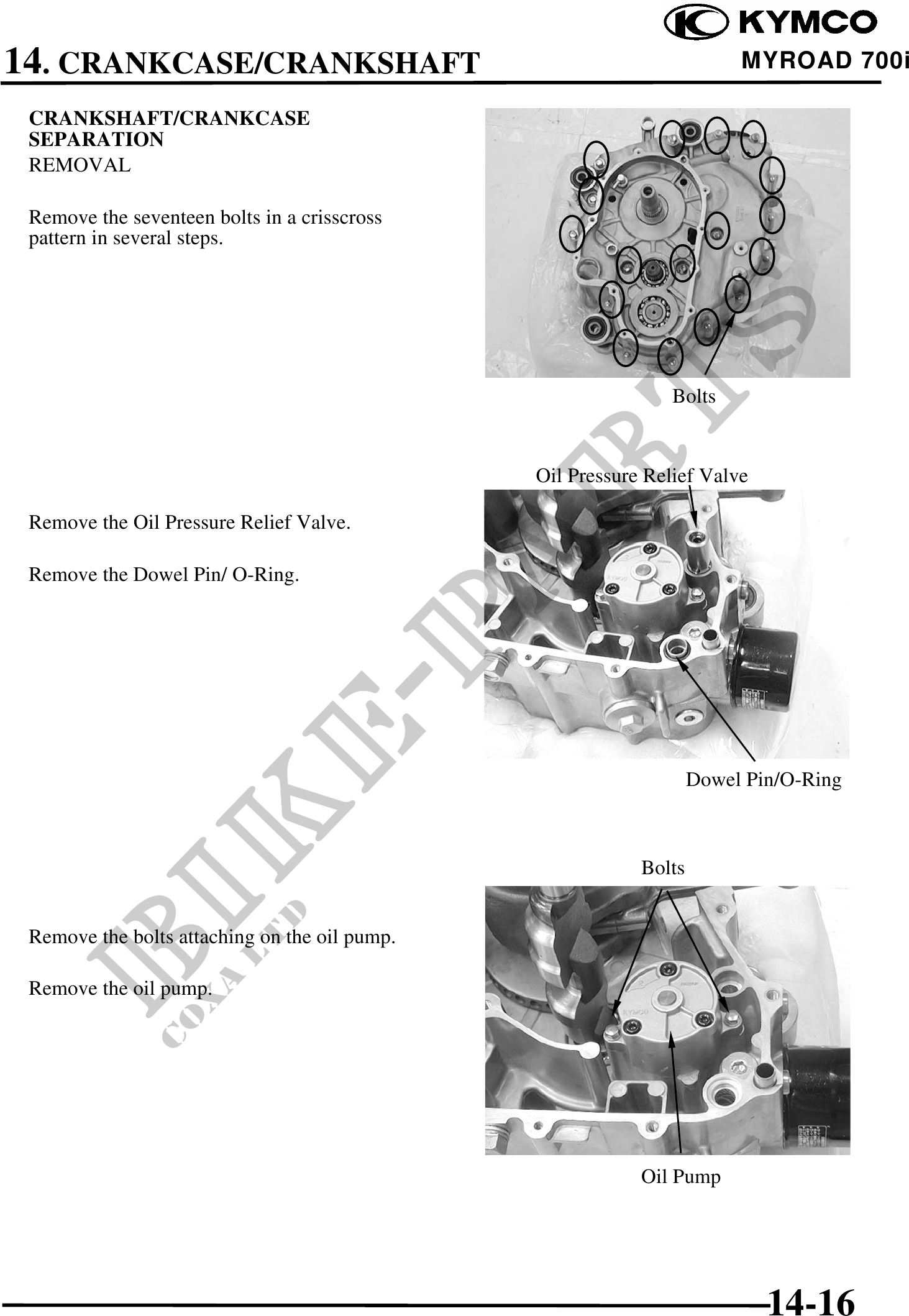

          14. CRANKCASE/CRANKSHAFT                                                MYROAD 700i

 CRANKSHAFT/CRANKCASE
 SEPARATION
 REMOVAL

 Remove the seventeen bolts in a crisscross
 pattern in several steps.




                                                               Bolts


                                               Oil Pressure Relief Valve

 Remove the Oil Pressure Relief Valve.

 Remove the Dowel Pin/ O-Ring.




                                                                   Dowel Pin/O-Ring



                                                           Bolts


 Remove the bolts attaching on the oil pump.

 Remove the oil pump.




                                                           Oil Pump
