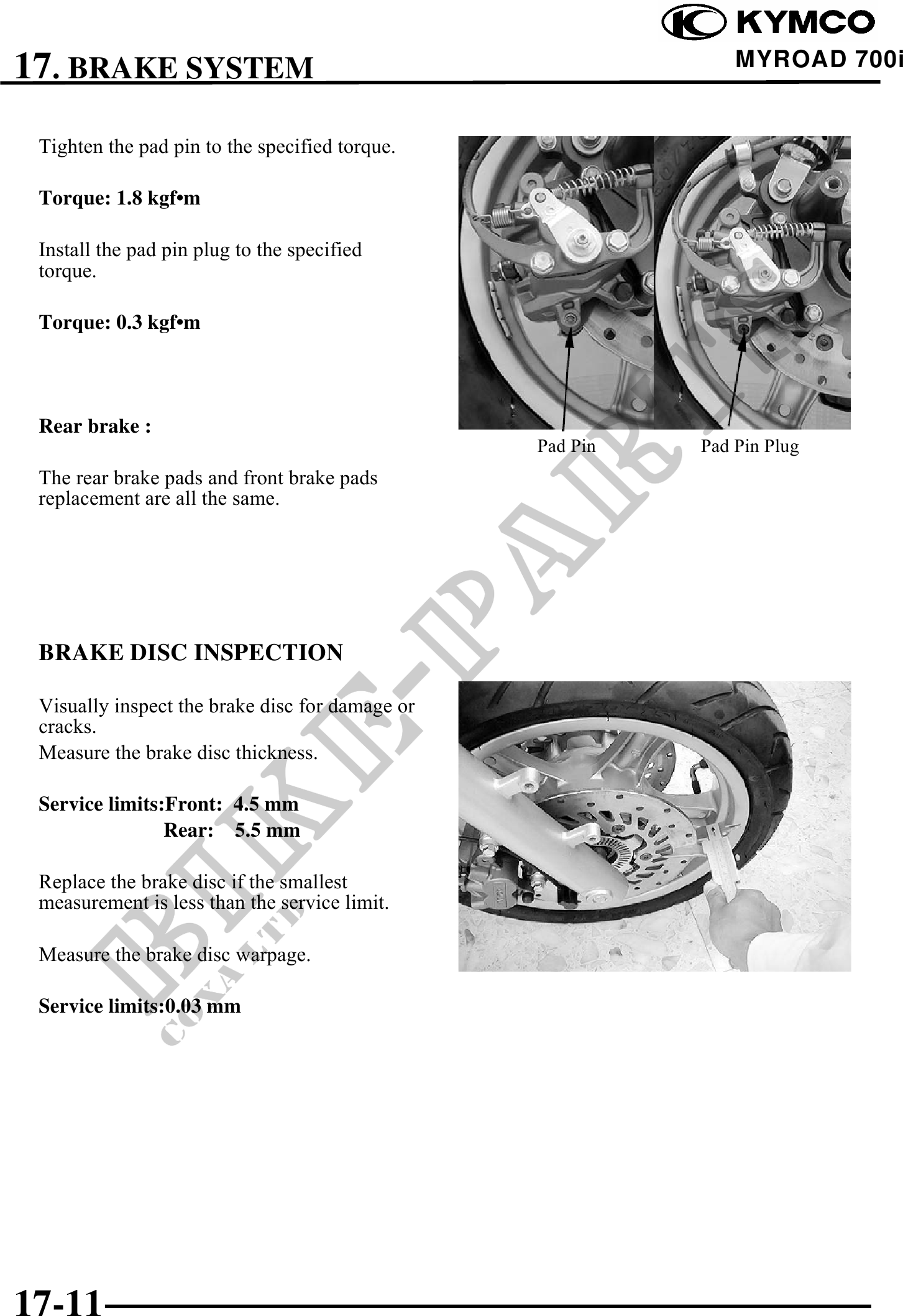

17. BRAKE SYSTEM MYROAD 700i
Tighten the pad pin to the specified torque.
Torque: 1.8 kgf·m
Install the pad pin plug to the specified
torque.
Torque: 0.3 kgf·m
Rear brake :
Pad Pin Pad Pin Plug
The rear brake pads and front brake pads
replacement are all the same.
BRAKE DISC INSPECTION
Visually inspect the brake disc for damage or
cracks.
Measure the brake disc thickness.
Service limits:Front: 4.5 mm
Rear: 5.5 mm
Replace the brake disc if the smallest
measurement is less than the service limit.
Measure the brake disc warpage.
Service limits:0.03 mm
17-11
