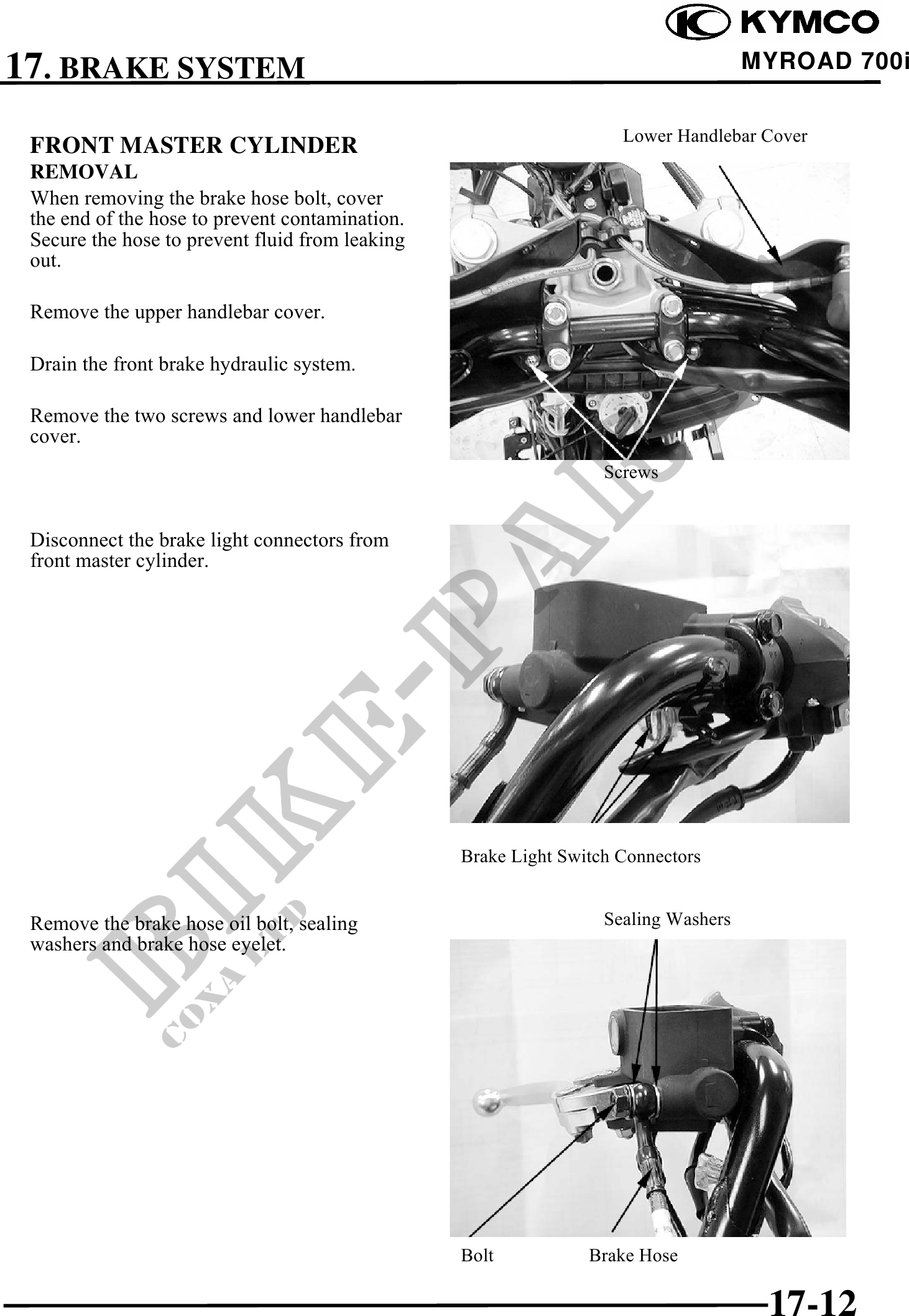

17. BRAKE SYSTEM MYROAD 700i
Lower Handlebar Cover
FRONT MASTER CYLINDER
REMOVAL
When removing the brake hose bolt, cover
the end of the hose to prevent contamination.
Secure the hose to prevent fluid from leaking
out.
Remove the upper handlebar cover.
Drain the front brake hydraulic system.
Remove the two screws and lower handlebar
cover.
Screws
Disconnect the brake light connectors from
front master cylinder.
Brake Light Switch Connectors
Remove the brake hose oil bolt, sealing Sealing Washers
washers and brake hose eyelet.
Bolt Brake Hose
17-12
