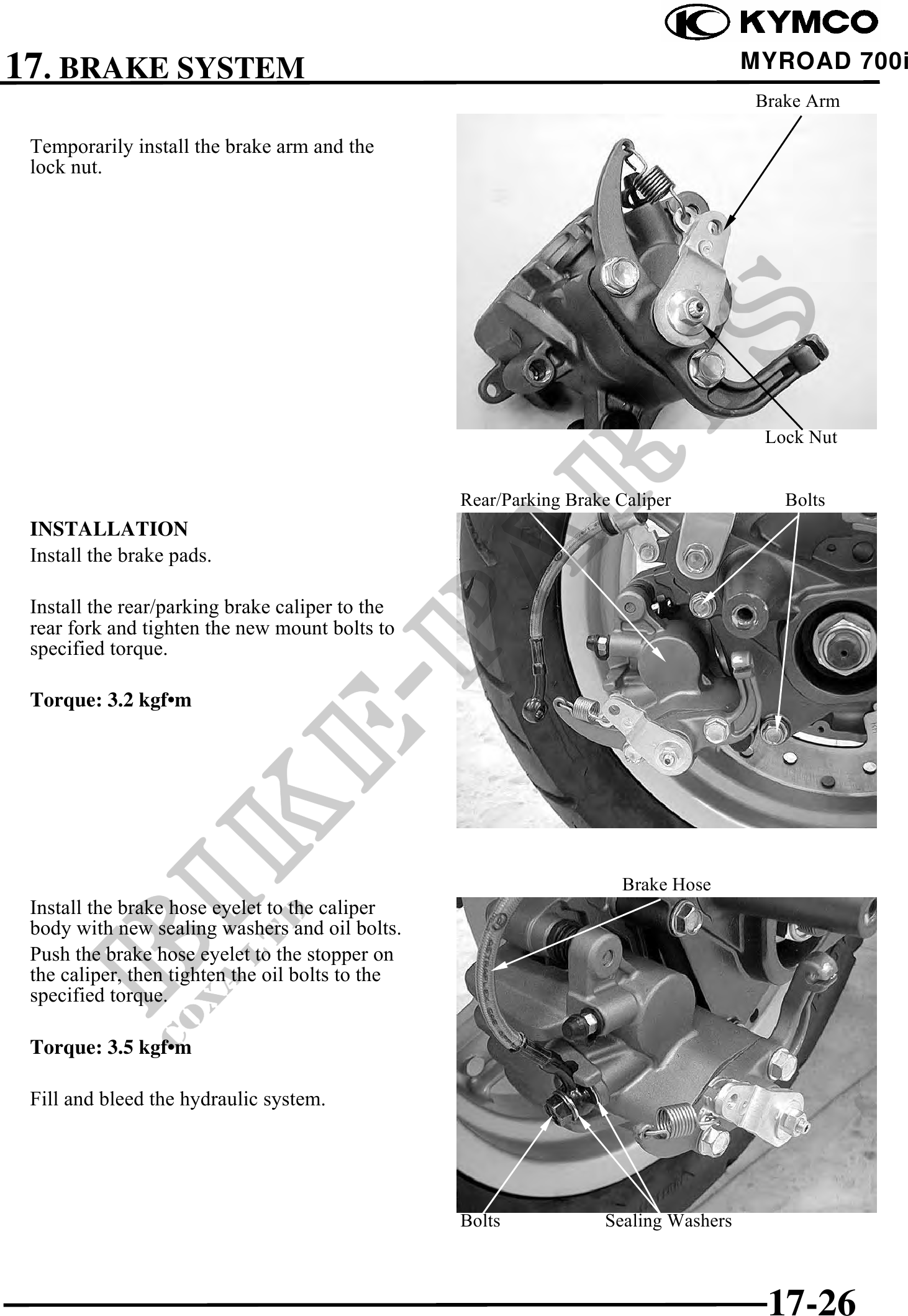

17. BRAKE SYSTEM MYROAD 700i
Brake Arm
Temporarily install the brake arm and the
lock nut.
Lock Nut
Rear/Parking Brake Caliper Bolts
INSTALLATION
Install the brake pads.
Install the rear/parking brake caliper to the
rear fork and tighten the new mount bolts to
specified torque.
Torque: 3.2 kgf·m
Brake Hose
Install the brake hose eyelet to the caliper
body with new sealing washers and oil bolts.
Push the brake hose eyelet to the stopper on
the caliper, then tighten the oil bolts to the
specified torque.
Torque: 3.5 kgf·m
Fill and bleed the hydraulic system.
Bolts Sealing Washers
17-26
