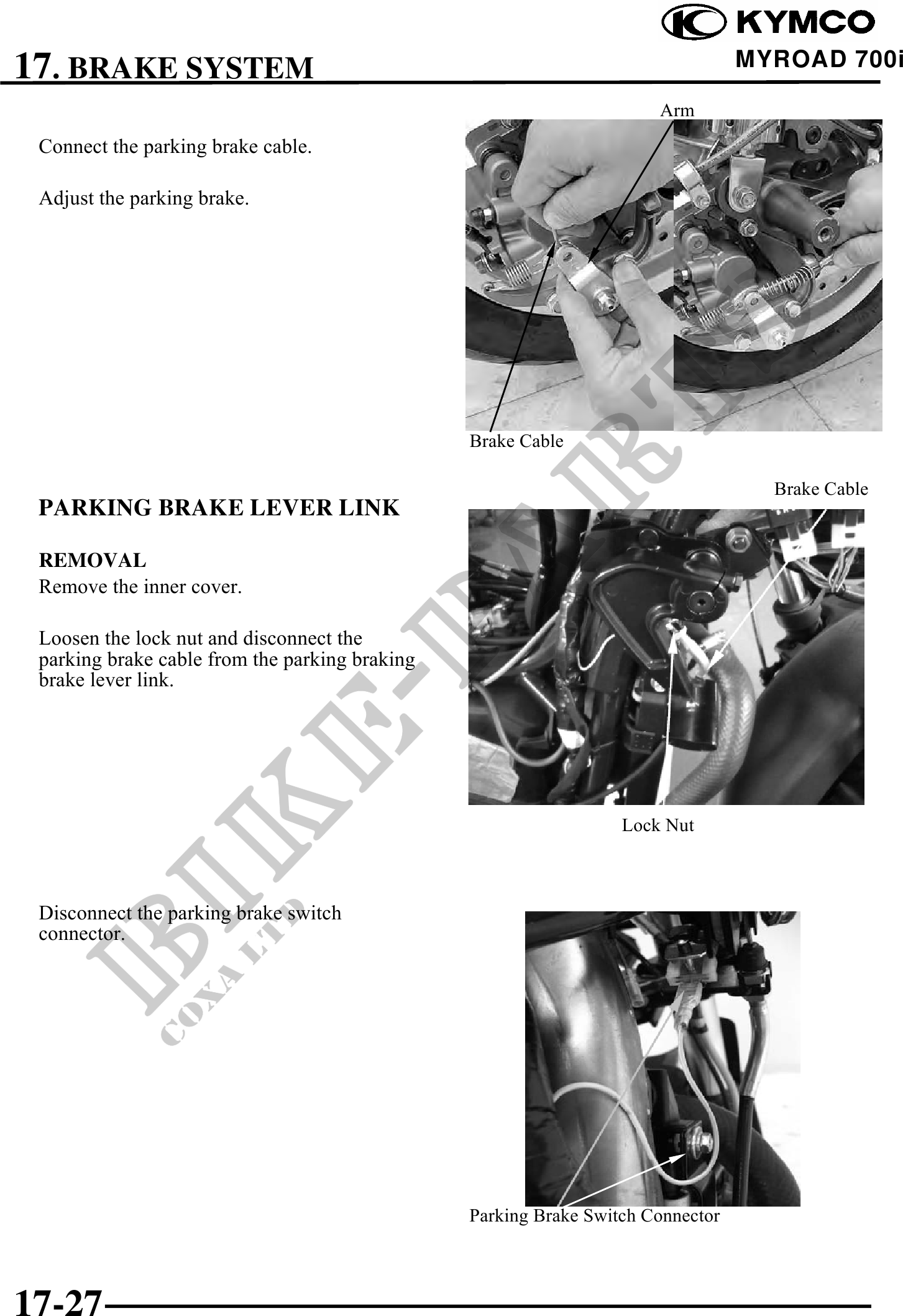

          17. BRAKE SYSTEM                                                                 MYROAD 700i

                                                                      Arm
 Connect the parking brake cable.

 Adjust the parking brake.




                                                Brake Cable

                                                                                   Brake Cable
 PARKING BRAKE LEVER LINK

 REMOVAL
 Remove the inner cover.

 Loosen the lock nut and disconnect the
 parking brake cable from the parking braking
 brake lever link.




                                                                  Lock Nut



 Disconnect the parking brake switch
 connector.




                                                Parking Brake Switch Connector



17-27
