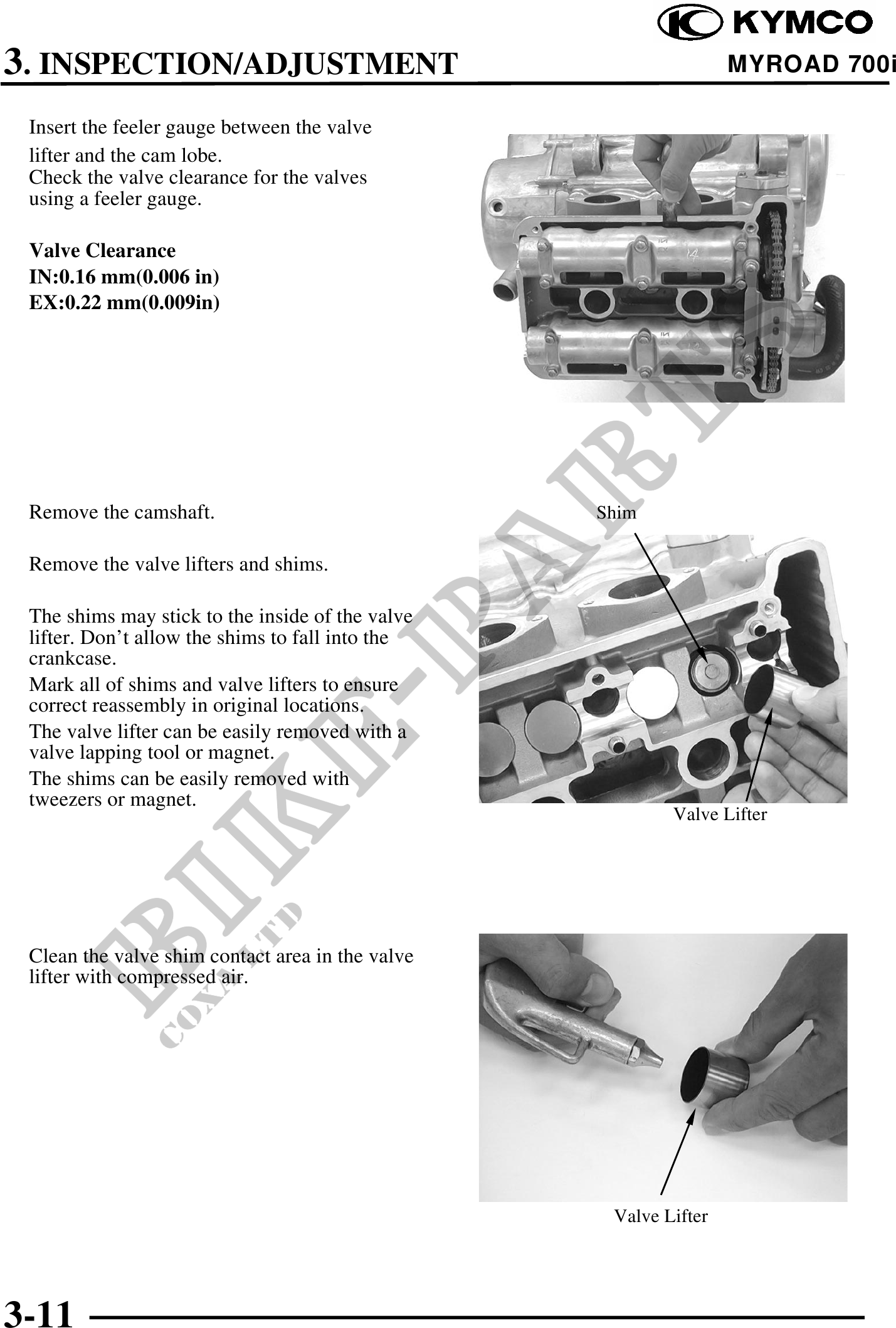

3. INSPECTION/ADJUSTMENT MYROAD 700i
Insert the feeler gauge between the valve
lifter and the cam lobe.
Check the valve clearance for the valves
using a feeler gauge.
Valve Clearance
IN:0.16 mm(0.006 in)
EX:0.22 mm(0.009in)
Remove the camshaft. Shim
Remove the valve lifters and shims.
The shims may stick to the inside of the valve
lifter. Don't allow the shims to fall into the
crankcase.
Mark all of shims and valve lifters to ensure
correct reassembly in original locations.
The valve lifter can be easily removed with a
valve lapping tool or magnet.
The shims can be easily removed with
tweezers or magnet.
Valve Lifter
Clean the valve shim contact area in the valve
lifter with compressed air.
Valve Lifter
3-11
