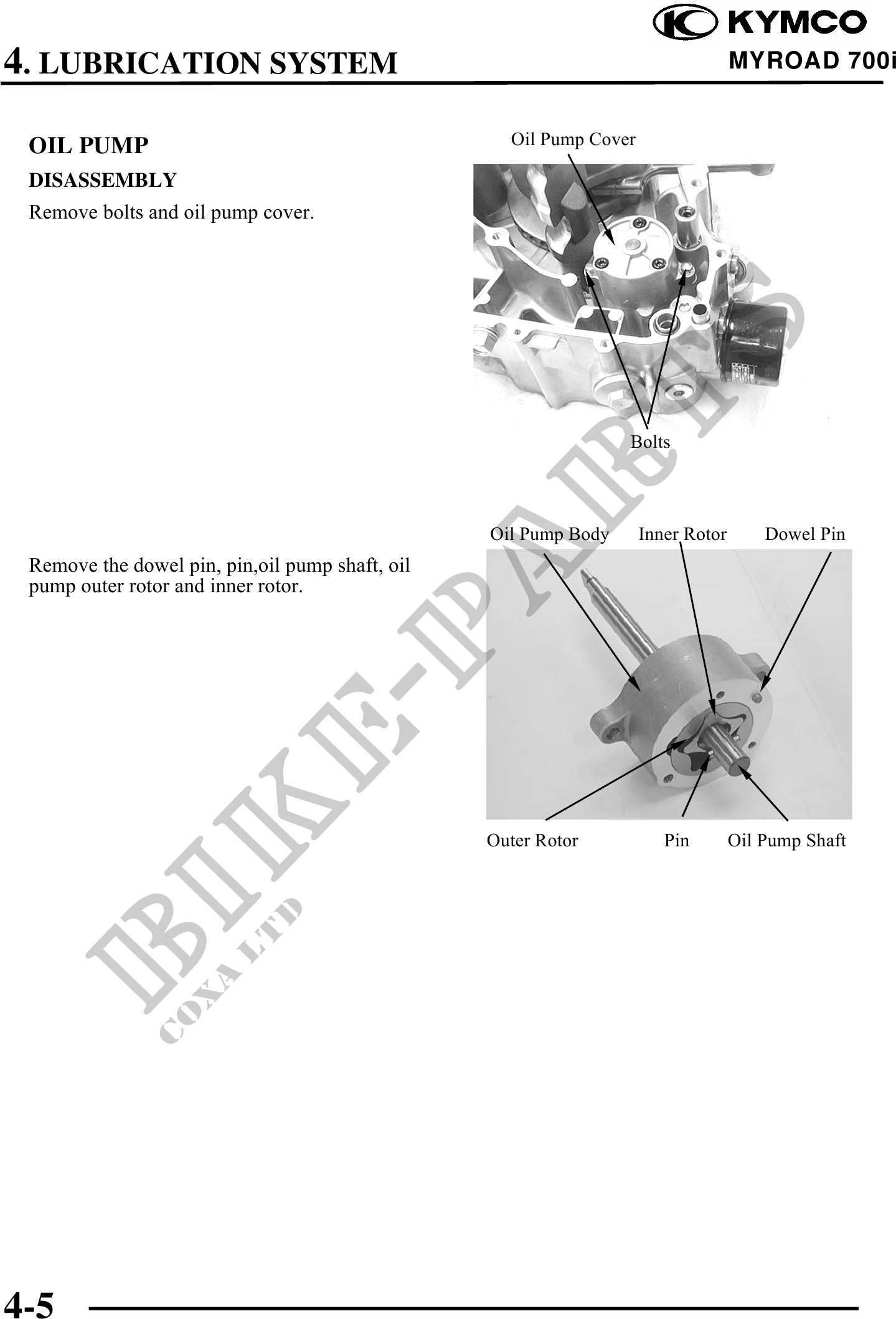

          4. LUBRICATION SYSTEM                                                             MYROAD 700i


 OIL PUMP                                          Oil Pump Cover

 DISASSEMBLY
 Remove bolts and oil pump cover.




                                                                 Bolts



                                                 Oil Pump Body      Inner Rotor       Dowel Pin
 Remove the dowel pin, pin,oil pump shaft, oil
 pump outer rotor and inner rotor.




                                                 Outer Rotor           Pin        Oil Pump Shaft




4-5
