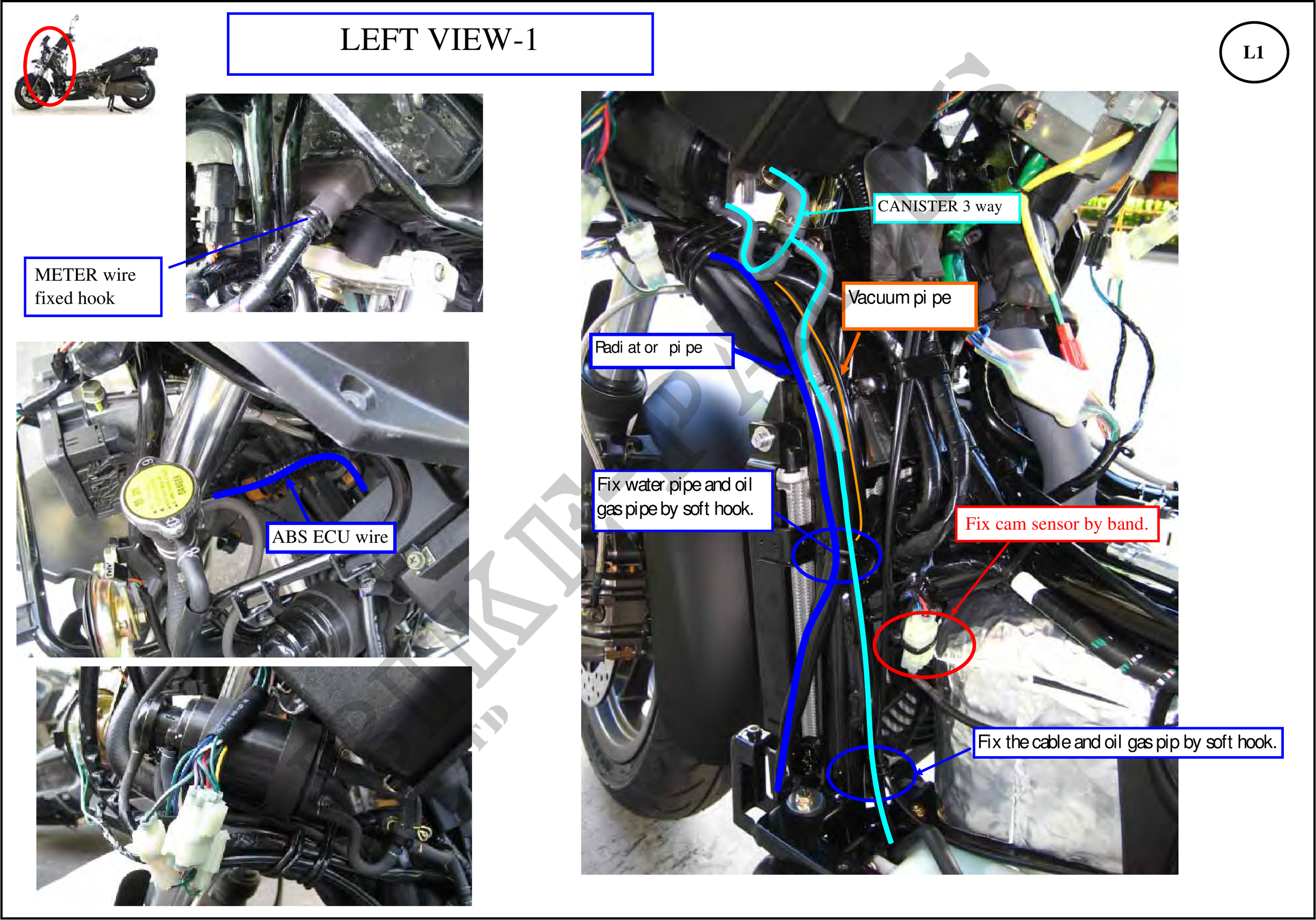

                              LEFT VIEW-1                                                                                 L1




                                                              CANISTER 3 way



METER wire
fixed hook                                                 Vacuum pipe

                                  Radiator pipe




                                  Fix water pipe and oil
                                  gas pipe by soft hook.
                                                                         Fix cam sensor by band.
             ABS ECU wire




                                                                          Fix the cable and oil gas pip by soft hook.
