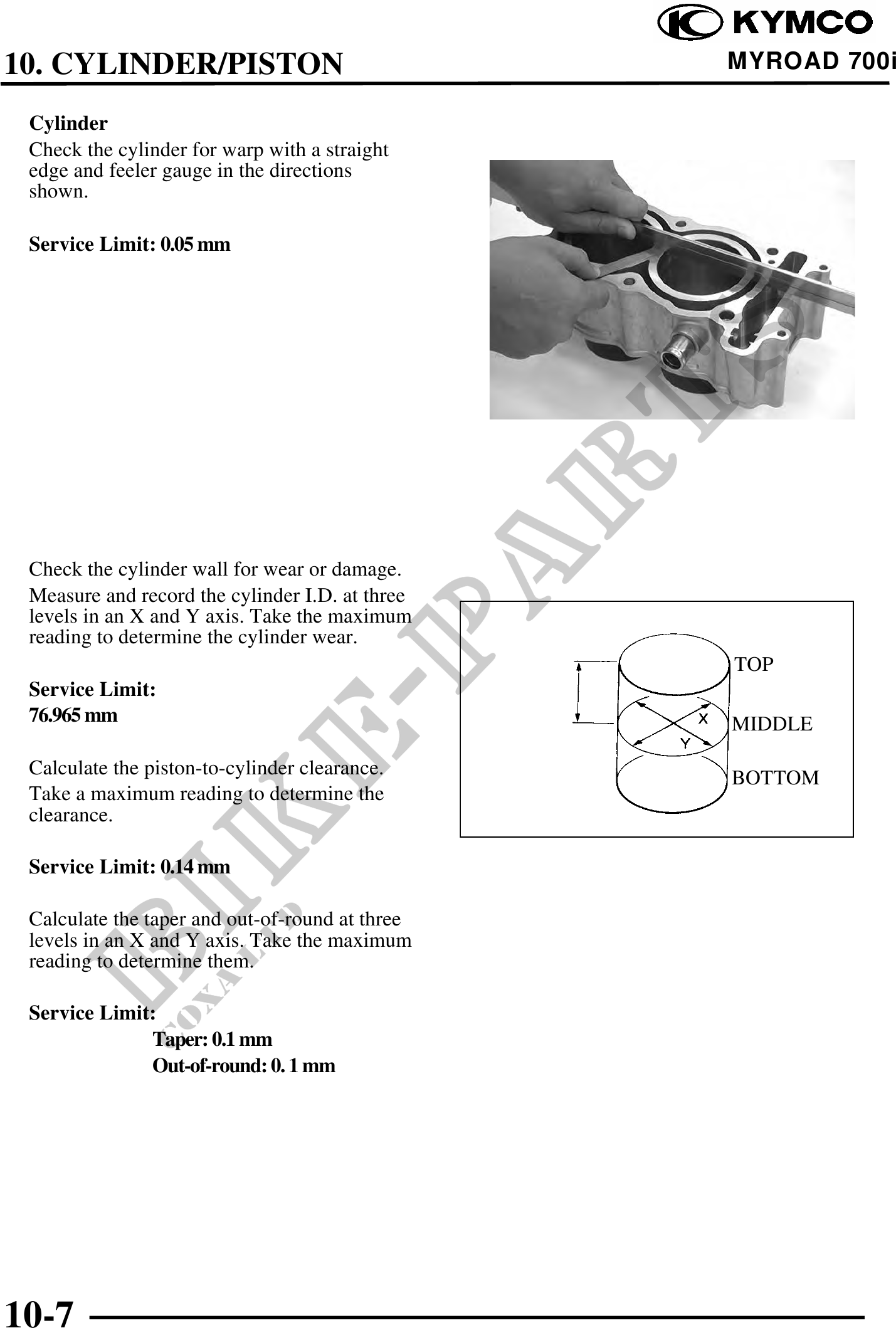

10. CYLINDER/PISTON MYROAD 700i
Cylinder
Check the cylinder for warp with a straight
edge and feeler gauge in the directions
shown.
Service Limit: 0.05 mm
Check the cylinder wall for wear or damage.
Measure and record the cylinder I.D. at three
levels in an X and Y axis. Take the maximum
reading to determine the cylinder wear.
TOP
Service Limit:
76.965 mm MIDDLE
Calculate the piston-to-cylinder clearance. BOTTOM
Take a maximum reading to determine the
clearance.
Service Limit: 0.14 mm
Calculate the taper and out-of-round at three
levels in an X and Y axis. Take the maximum
reading to determine them.
Service Limit:
Taper: 0.1 mm
Out-of-round: 0. 1 mm
10-7
