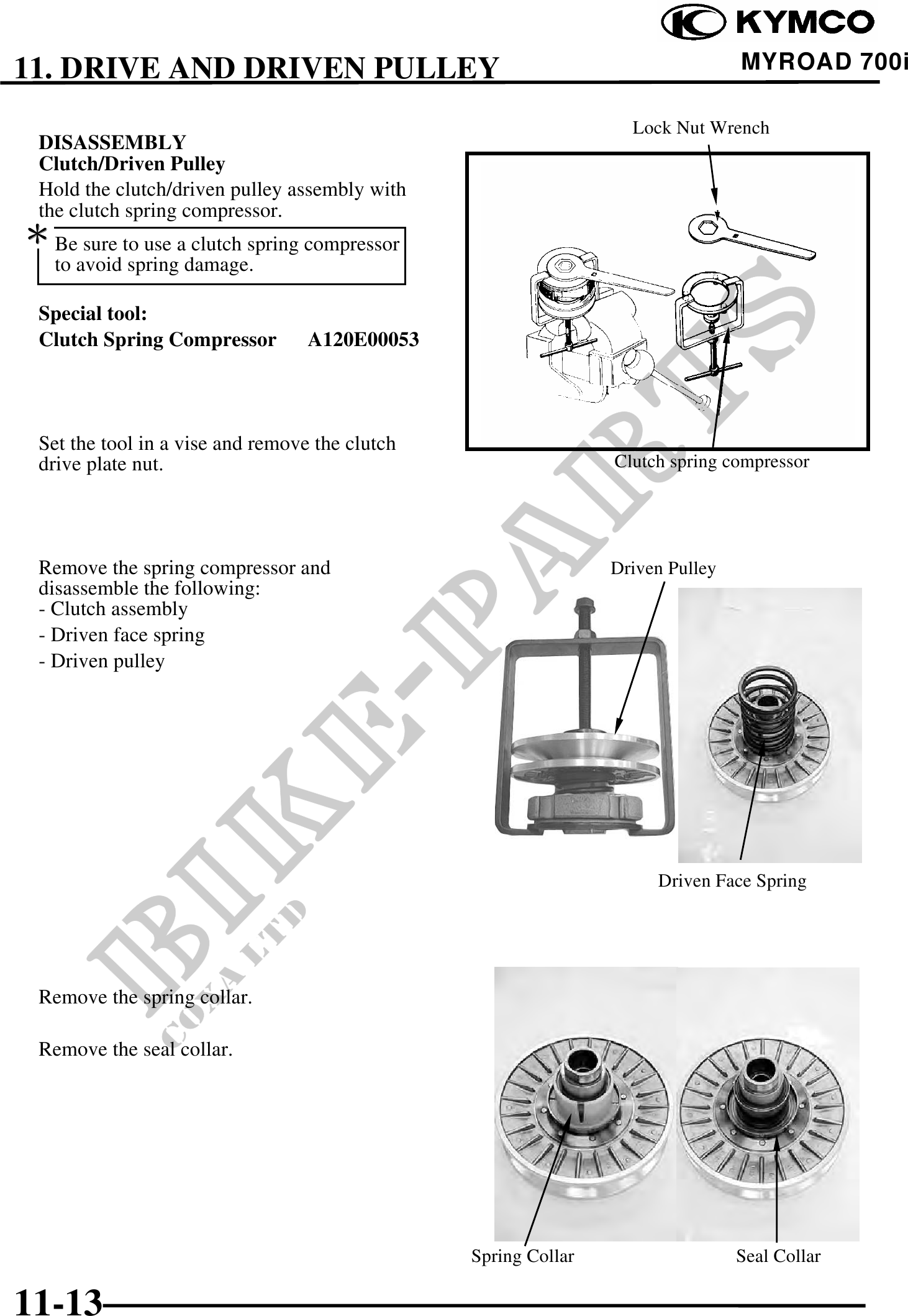

11. DRIVE AND DRIVEN PULLEY MYROAD 700i
Lock Nut Wrench
DISASSEMBLY
Clutch/Driven Pulley
Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Be sure to use a clutch spring compressor
to avoid spring damage.
Special tool:
Clutch Spring Compressor A120E00053
Set the tool in a vise and remove the clutch
drive plate nut. Clutch spring compressor
Remove the spring compressor and Driven Pulley
disassemble the following:
- Clutch assembly
- Driven face spring
- Driven pulley
Driven Face Spring
Remove the spring collar.
Remove the seal collar.
Spring Collar Seal Collar
11-13
