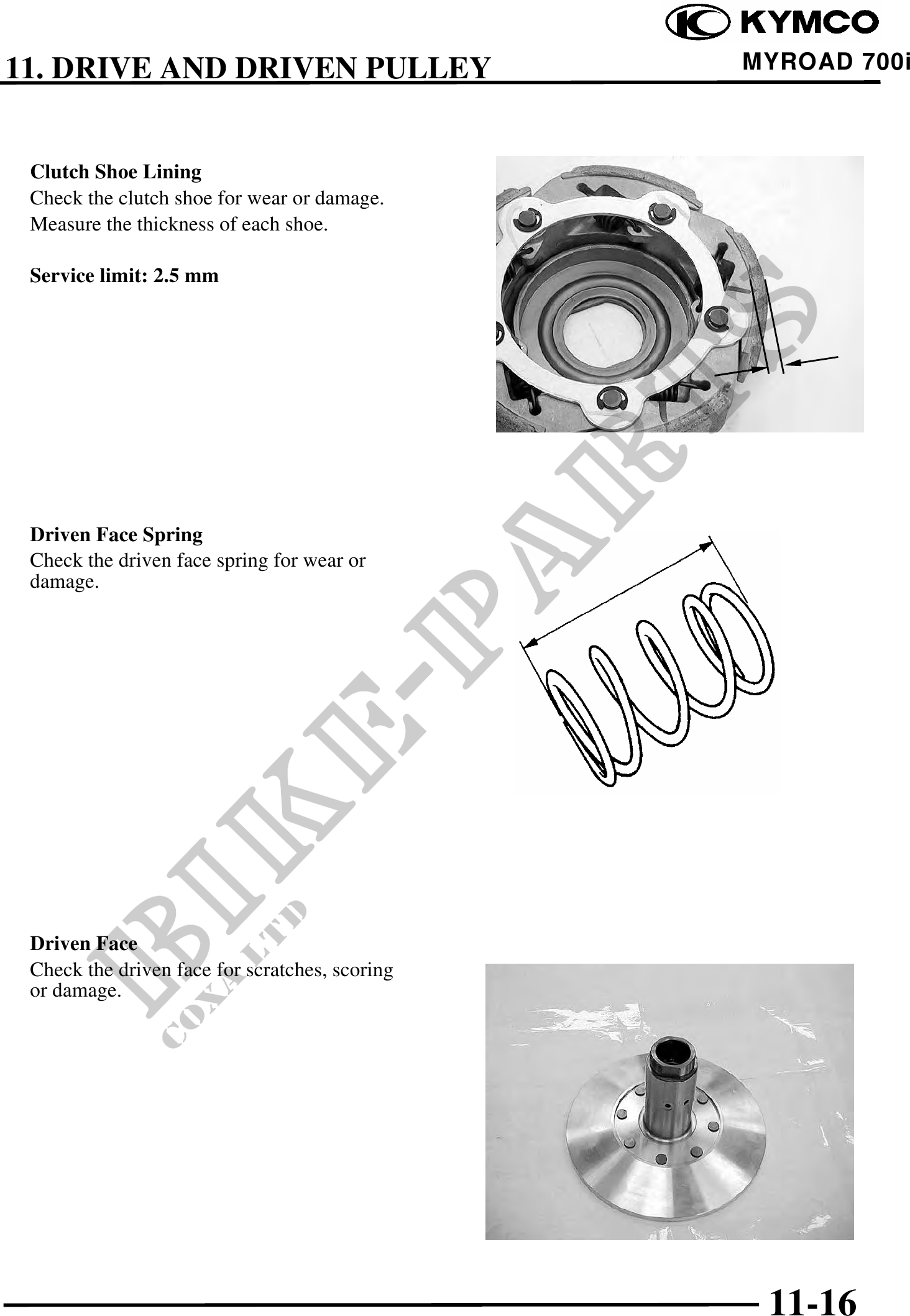

11. DRIVE AND DRIVEN PULLEY MYROAD 700i
Clutch Shoe Lining
Check the clutch shoe for wear or damage.
Measure the thickness of each shoe.
Service limit: 2.5 mm
Driven Face Spring
Check the driven face spring for wear or
damage.
Driven Face
Check the driven face for scratches, scoring
or damage.
11-16
