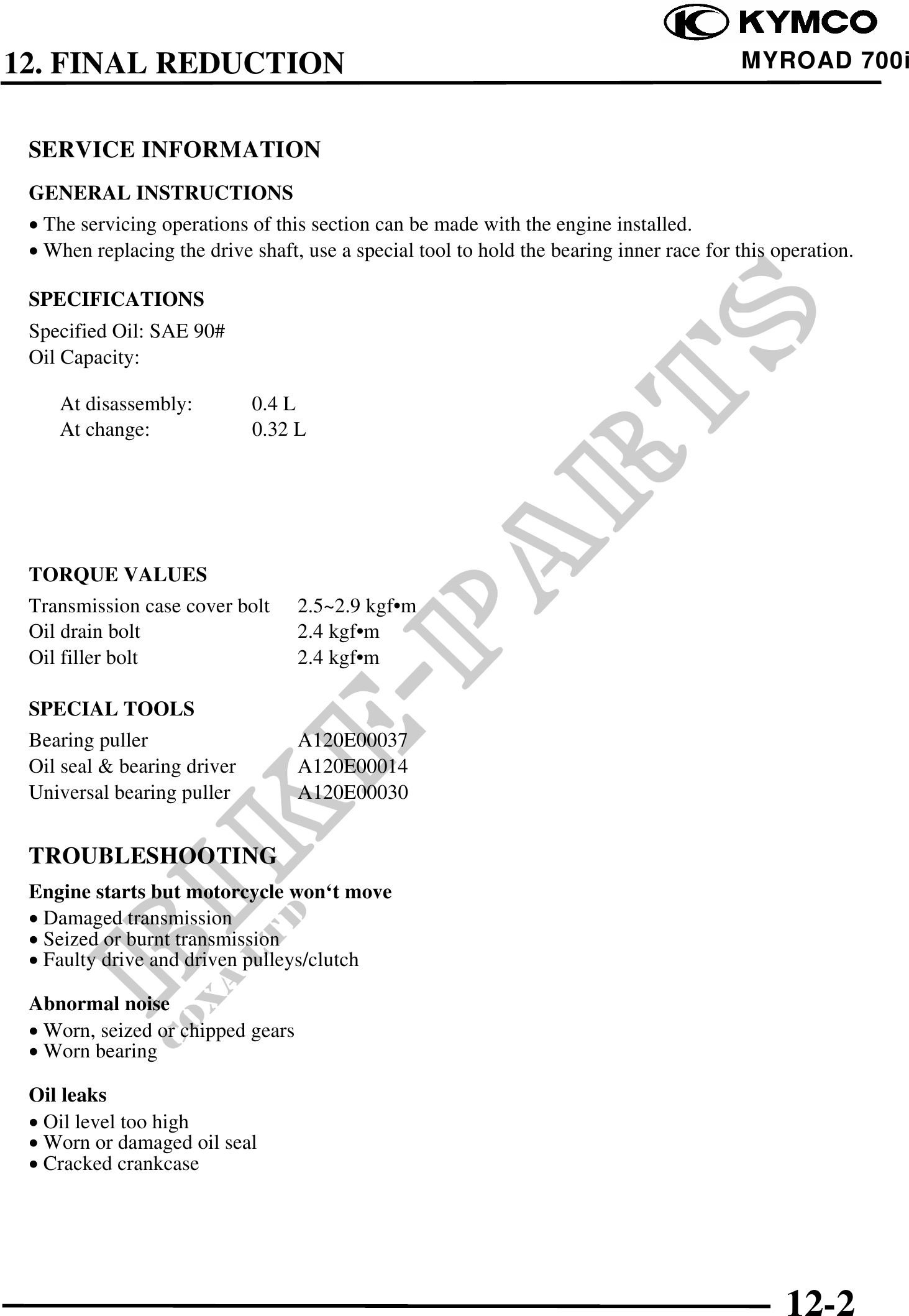

12. FINAL REDUCTION MYROAD 700i
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· The servicing operations of this section can be made with the engine installed.
· When replacing the drive shaft, use a special tool to hold the bearing inner race for this operation.
SPECIFICATIONS
Specified Oil: SAE 90#
Oil Capacity:
At disassembly: 0.4 L
At change: 0.32 L
TORQUE VALUES
Transmission case cover bolt 2.5~2.9 kgf·m
Oil drain bolt 2.4 kgf·m
Oil filler bolt 2.4 kgf·m
SPECIAL TOOLS
Bearing puller A120E00037
Oil seal & bearing driver A120E00014
Universal bearing puller A120E00030
TROUBLESHOOTING
Engine starts but motorcycle won`t move
· Damaged transmission
· Seized or burnt transmission
· Faulty drive and driven pulleys/clutch
Abnormal noise
· Worn, seized or chipped gears
· Worn bearing
Oil leaks
· Oil level too high
· Worn or damaged oil seal
· Cracked crankcase
12-2
