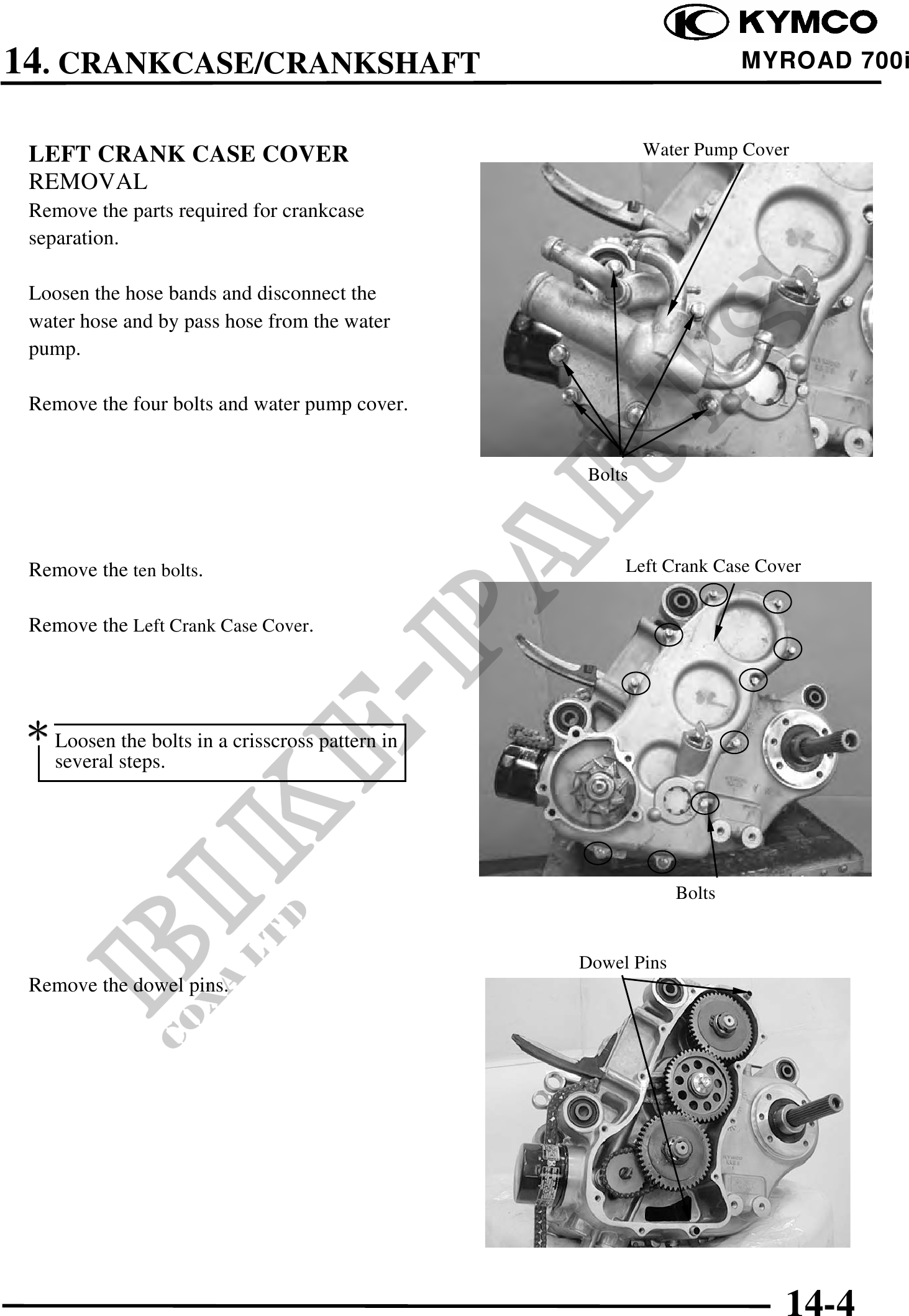

14. CRANKCASE/CRANKSHAFT MYROAD 700i
LEFT CRANK CASE COVER Water Pump Cover
REMOVAL
Remove the parts required for crankcase
separation.
Loosen the hose bands and disconnect the
water hose and by pass hose from the water
pump.
Remove the four bolts and water pump cover.
Bolts
Remove the ten bolts. Left Crank Case Cover
Remove the Left Crank Case Cover.
Loosen the bolts in a crisscross pattern in
several steps.
Bolts
Dowel Pins
Remove the dowel pins.
14-4
