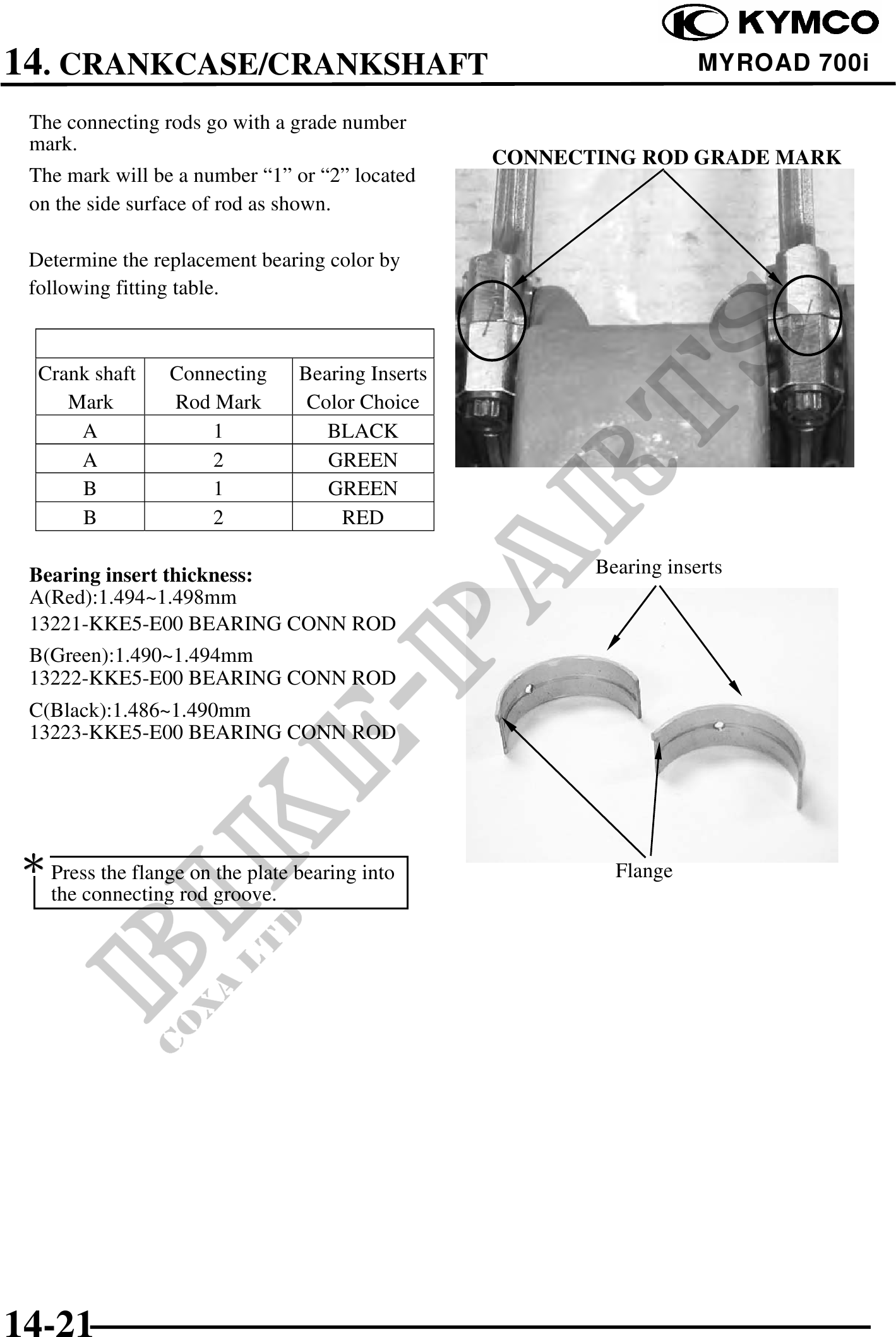

14. CRANKCASE/CRANKSHAFT MYROAD 700i
The connecting rods go with a grade number
mark.
CONNECTING ROD GRADE MARK
The mark will be a number "1" or "2" located
on the side surface of rod as shown.
Determine the replacement bearing color by
following fitting table.
Crank shaft Connecting Bearing Inserts
Mark Rod Mark Color Choice
A 1 BLACK
A 2 GREEN
B 1 GREEN
B 2 RED
Bearing insert thickness: Bearing inserts
A(Red):1.494~1.498mm
13221-KKE5-E00 BEARING CONN ROD
B(Green):1.490~1.494mm
13222-KKE5-E00 BEARING CONN ROD
C(Black):1.486~1.490mm
13223-KKE5-E00 BEARING CONN ROD
Press the flange on the plate bearing into Flange
the connecting rod groove.
14-21
