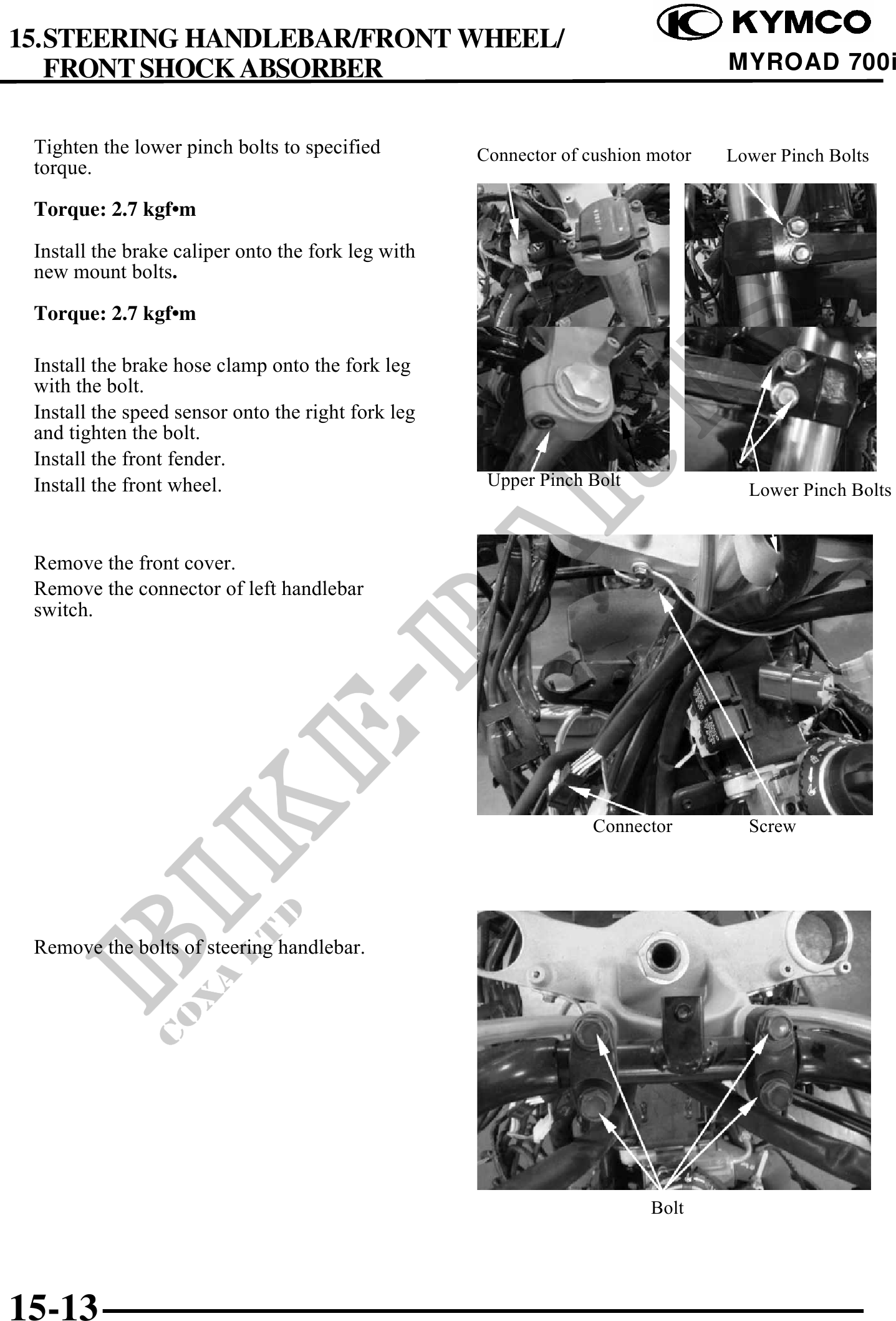

15. STEERING HANDLEBAR/FRONT WHEEL/
FRONT SHOCK ABSORBER MYROAD 700i
Tighten the lower pinch bolts to specified Connector of cushion motor Lower Pinch Bolts
torque.
Torque: 2.7 kgf·m
Install the brake caliper onto the fork leg with
new mount bolts.
Torque: 2.7 kgf·m
Install the brake hose clamp onto the fork leg
with the bolt.
Install the speed sensor onto the right fork leg
and tighten the bolt.
Install the front fender.
Install the front wheel. Upper Pinch Bolt
Lower Pinch Bolts
Remove the front cover.
Remove the connector of left handlebar
switch.
Connector Screw
Remove the bolts of steering handlebar.
Bolt
15-13
