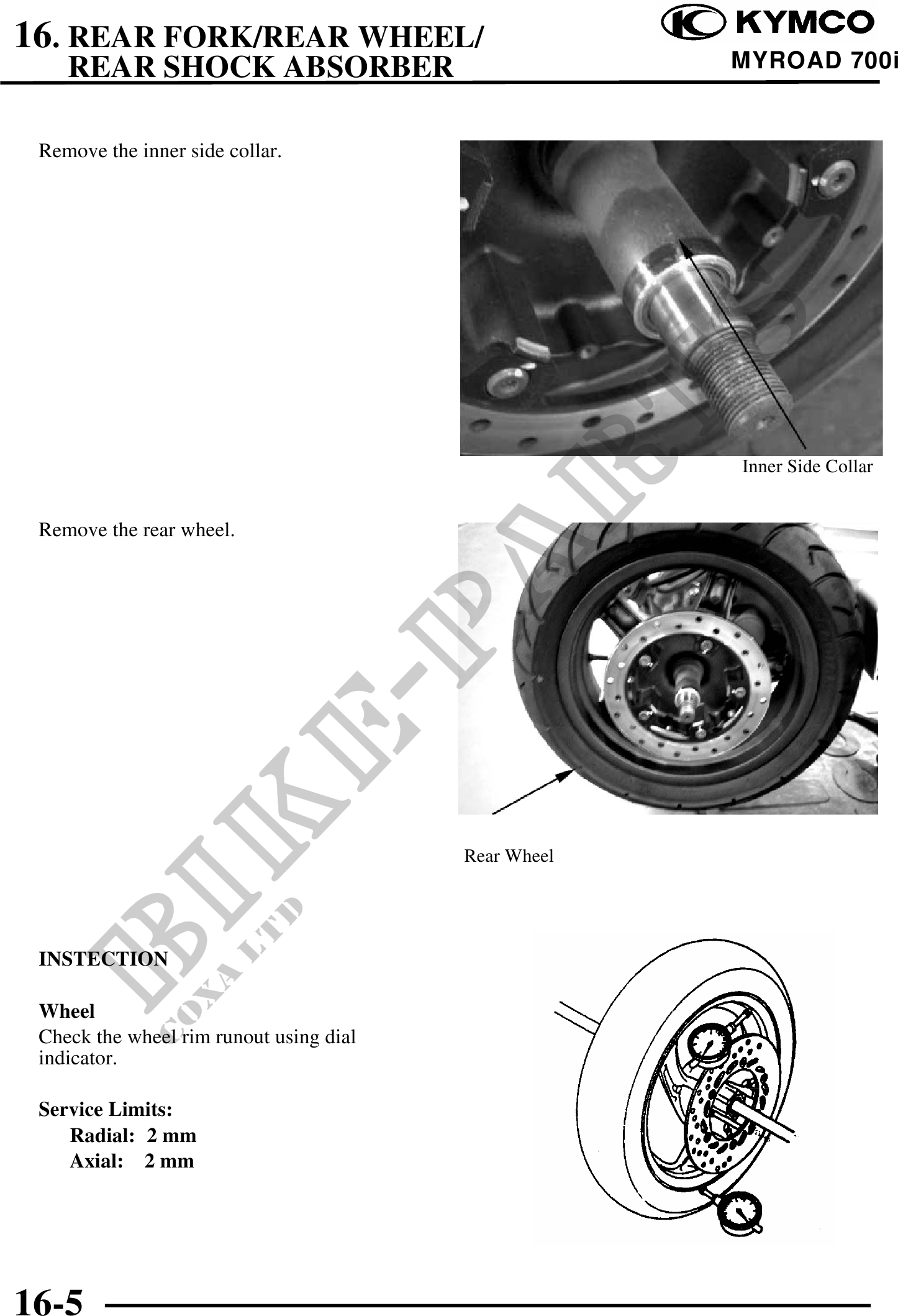

          16. REAR FORK/REAR WHEEL/
    REAR SHOCK ABSORBER                               MYROAD 700i


 Remove the inner side collar.




                                                      Inner Side Collar


 Remove the rear wheel.




                                         Rear Wheel




 INSTECTION

 Wheel
 Check the wheel rim runout using dial
 indicator.

 Service Limits:
    Radial: 2 mm
    Axial: 2 mm




16-5
