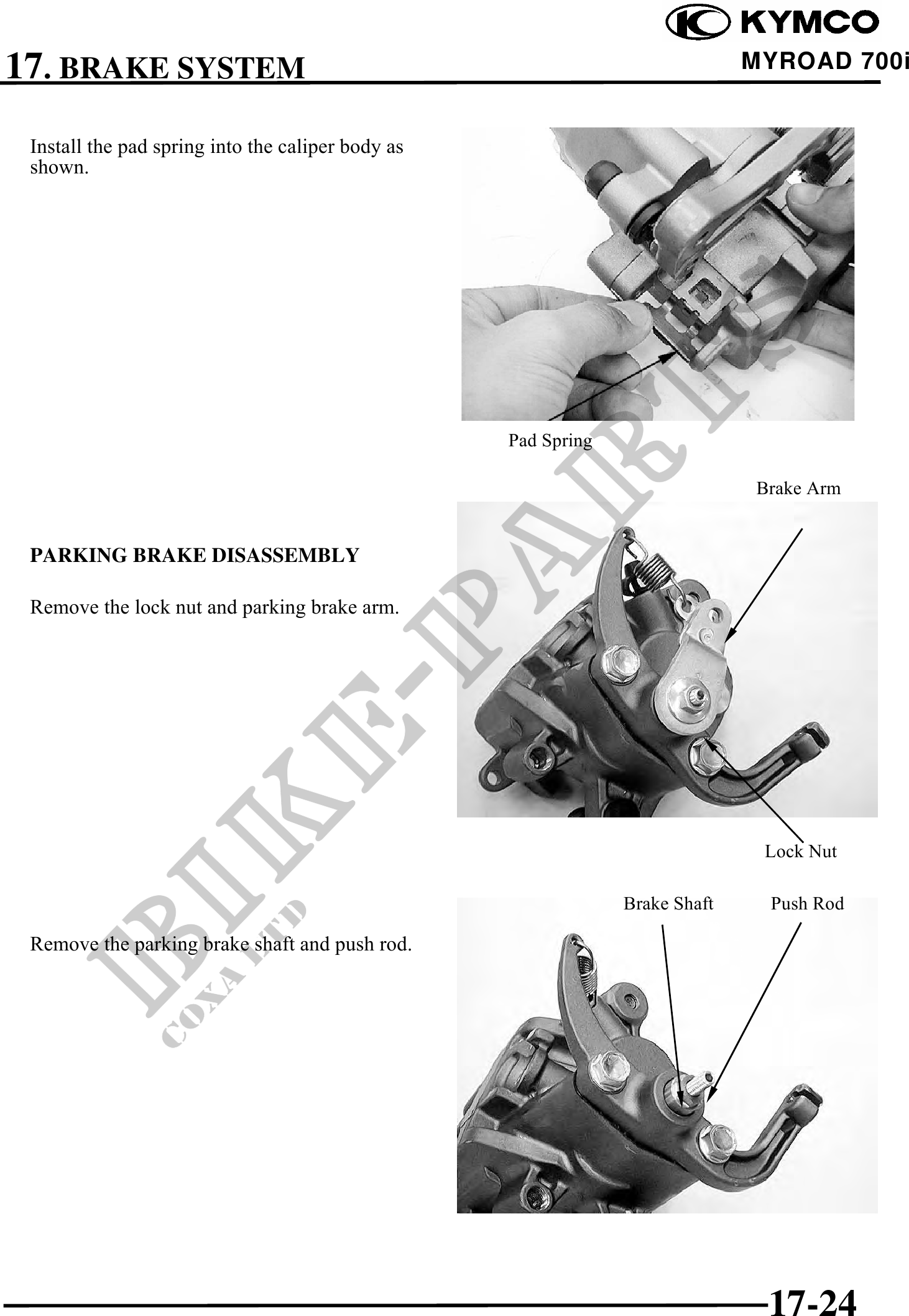

          17. BRAKE SYSTEM                                                              MYROAD 700i


 Install the pad spring into the caliper body as
 shown.




                                                   Pad Spring

                                                                              Brake Arm


 PARKING BRAKE DISASSEMBLY

 Remove the lock nut and parking brake arm.




                                                                               Lock Nut

                                                                Brake Shaft    Push Rod

 Remove the parking brake shaft and push rod.
