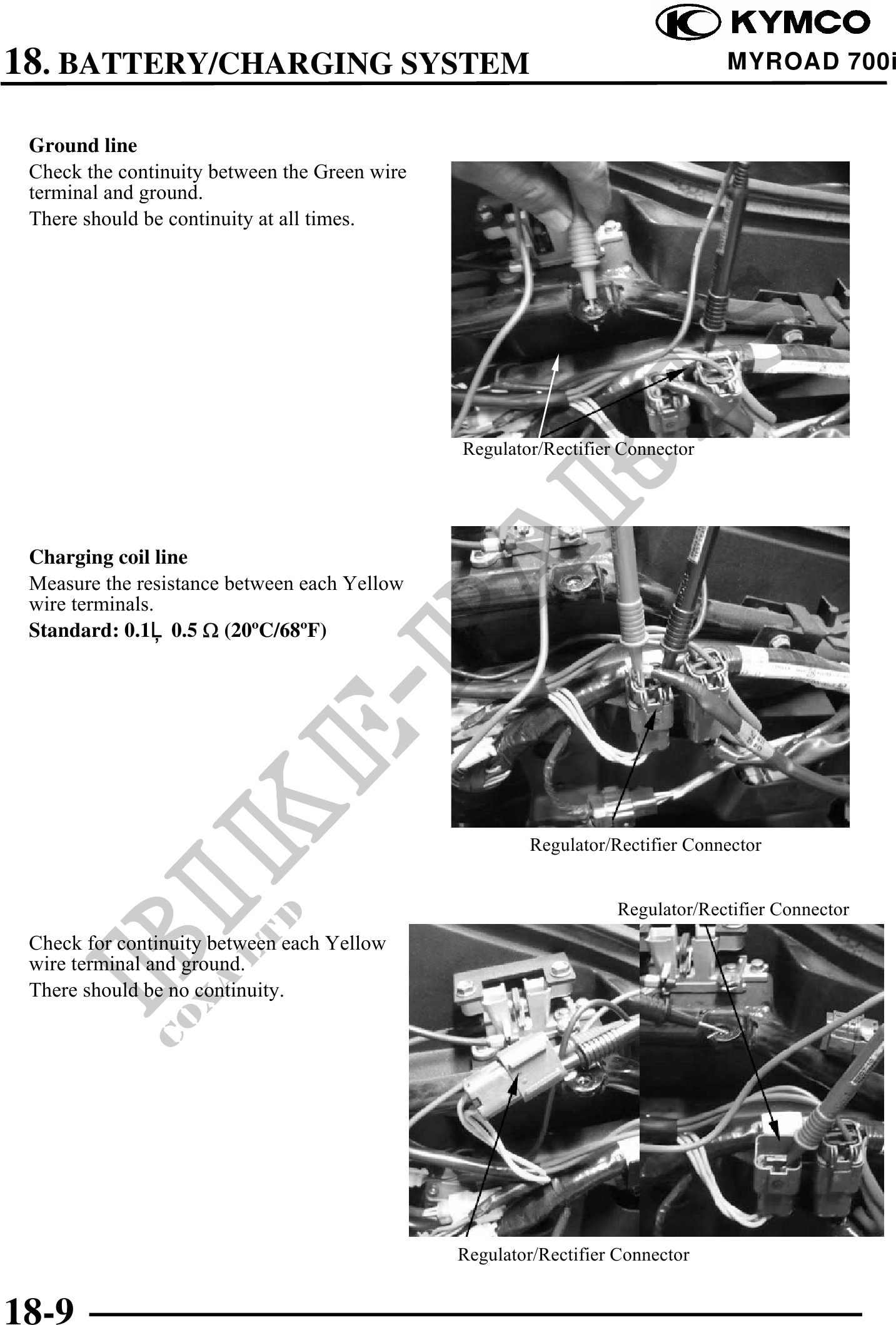

18. BATTERY/CHARGING SYSTEM MYROAD 700i
Ground line
Check the continuity between the Green wire
terminal and ground.
There should be continuity at all times.
Regulator/Rectifier Connector
Charging coil line
Measure the resistance between each Yellow
wire terminals.
Standard: 0.10.5 (20C/68F)
Regulator/Rectifier Connector
Regulator/Rectifier Connector
Check for continuity between each Yellow
wire terminal and ground.
There should be no continuity.
Regulator/Rectifier Connector
18-9
