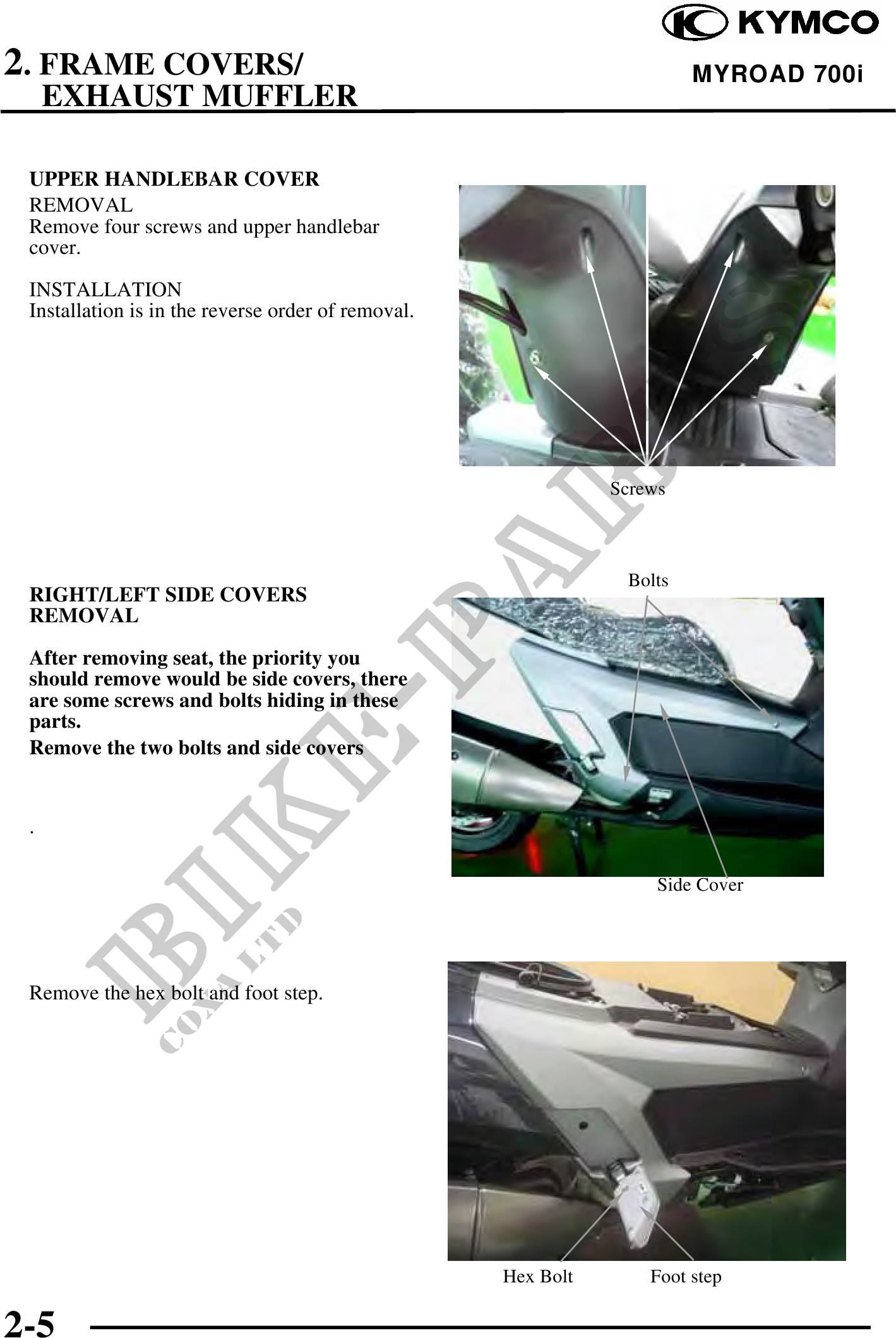

          2. FRAME COVERS/                                                        MYROAD 700i
     EXHAUST MUFFLER

 UPPER HANDLEBAR COVER
 REMOVAL
 Remove four screws and upper handlebar
 cover.

 INSTALLATION
 Installation is in the reverse order of removal.




                                                               Screws



                                                                Bolts
 RIGHT/LEFT SIDE COVERS
 REMOVAL

 After removing seat, the priority you
 should remove would be side covers, there
 are some screws and bolts hiding in these
 parts.
 Remove the two bolts and side covers


 .

                                                                    Side Cover




 Remove the hex bolt and foot step.




                                                    Hex Bolt       Foot step

2-5
