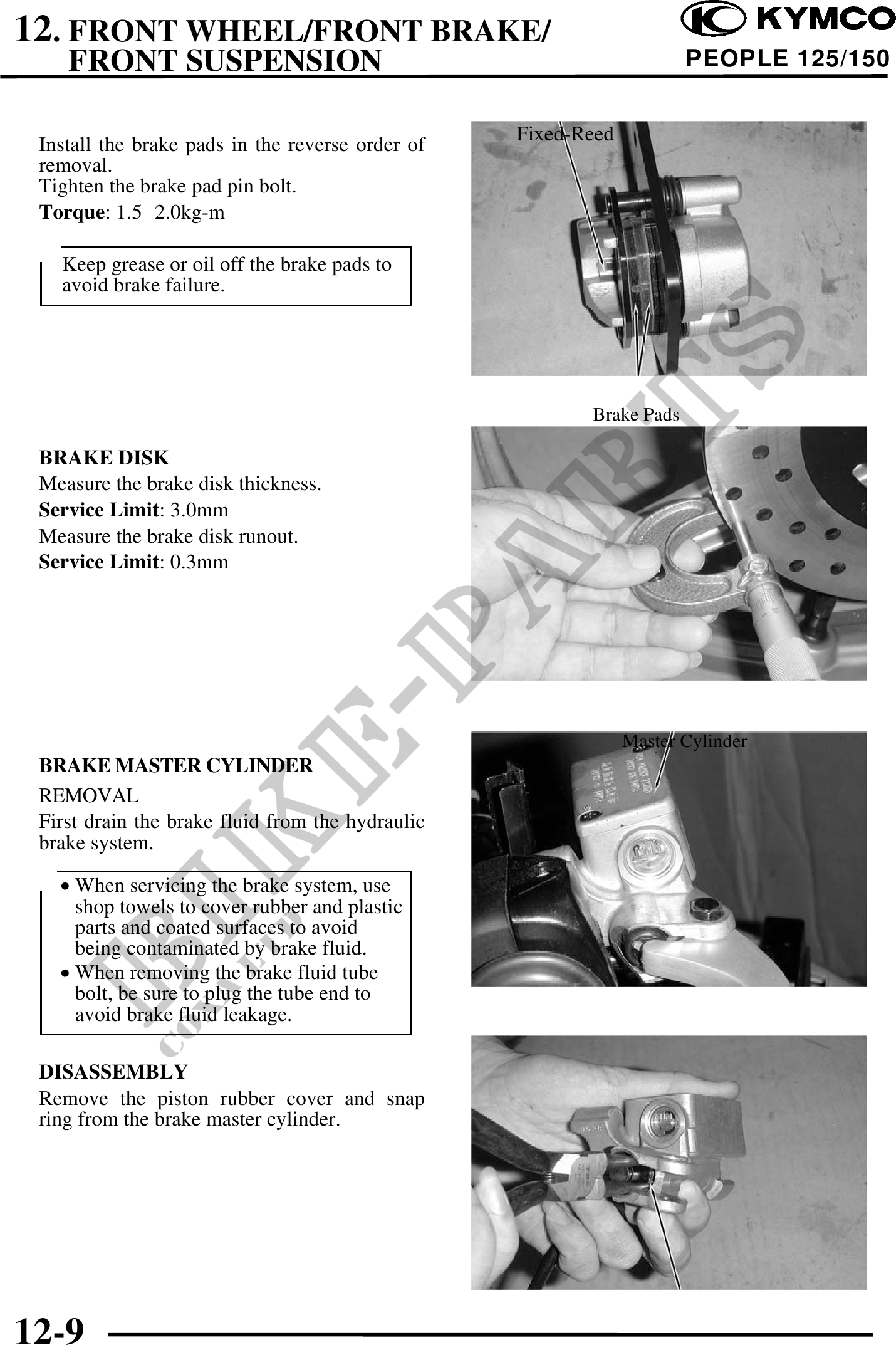

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                  PEOPLE 125/150


                                                  Fixed-Reed
 Install the brake pads in the reverse order of
 removal.
 Tighten the brake pad pin bolt.
 Torque: 1.5 2.0kg-m

   Keep grease or oil off the brake pads to
   avoid brake failure.




                                                         Brake Pads

 BRAKE DISK
 Measure the brake disk thickness.
 Service Limit: 3.0mm
 Measure the brake disk runout.
 Service Limit: 0.3mm




                                                               Master Cylinder
 BRAKE MASTER CYLINDER
 REMOVAL
 First drain the brake fluid from the hydraulic
 brake system.

   · When servicing the brake system, use
     shop towels to cover rubber and plastic
     parts and coated surfaces to avoid
     being contaminated by brake fluid.
   · When removing the brake fluid tube
     bolt, be sure to plug the tube end to
     avoid brake fluid leakage.

 DISASSEMBLY
 Remove the piston rubber cover and snap
 ring from the brake master cylinder.




12-9
