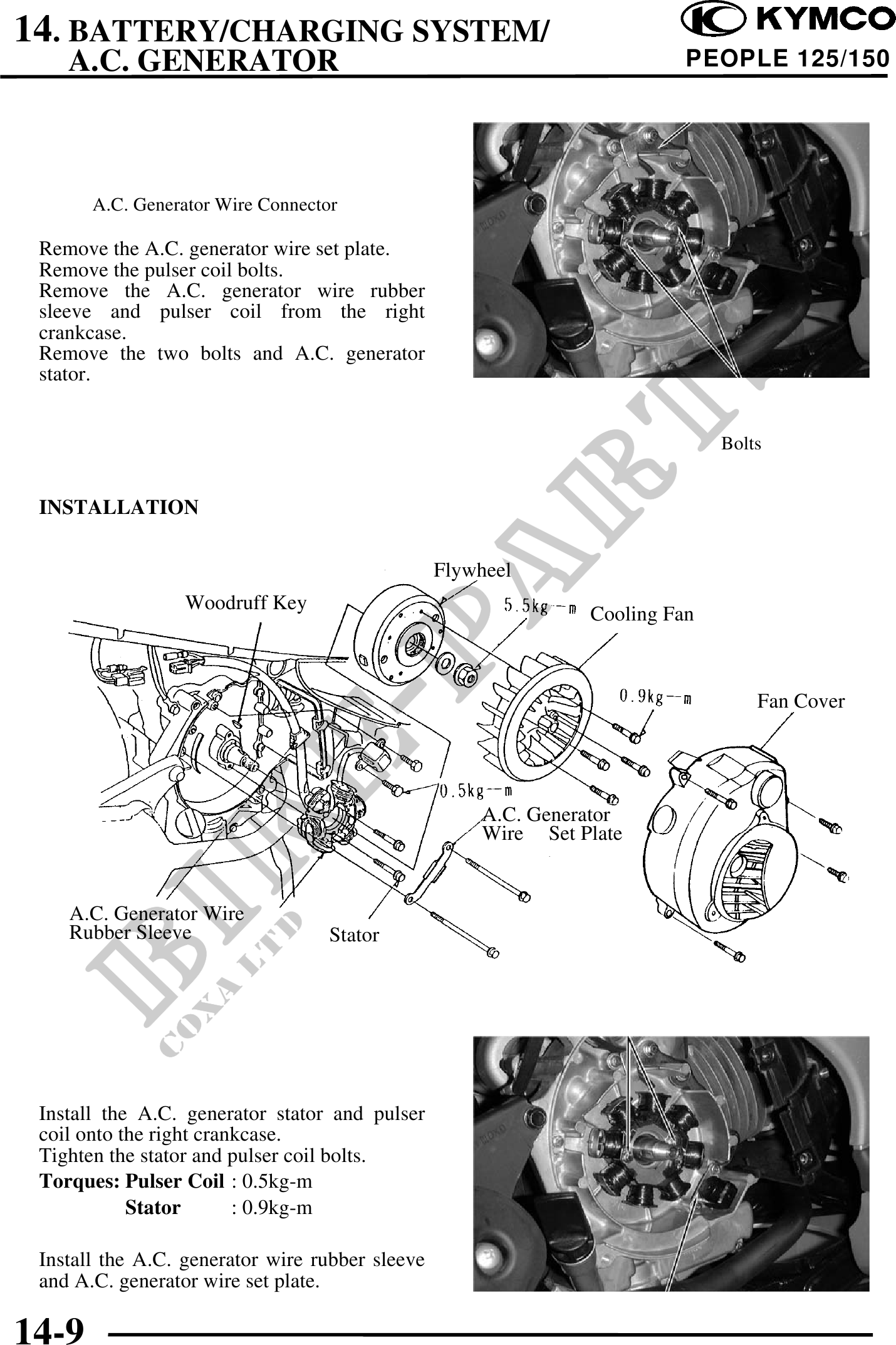

14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR PEOPLE 125/150
Wire Set Plate
A.C. Generator Wire Connector
Remove the A.C. generator wire set plate.
Remove the pulser coil bolts.
Remove the A.C. generator wire rubber
sleeve and pulser coil from the right
crankcase.
Remove the two bolts and A.C. generator
stator.
Bolts
INSTALLATION
Flywheel
Woodruff Key
Cooling Fan
Fan Cover
A.C. Generator
Wire Set Plate
A.C. Generator Wire
Rubber Sleeve Stator
Install the A.C. generator stator and pulser
coil onto the right crankcase.
Tighten the stator and pulser coil bolts.
Bolts
Torques: Pulser Coil : 0.5kg-m
Stator : 0.9kg-m
Install the A.C. generator wire rubber sleeve
and A.C. generator wire set plate.
14-9
