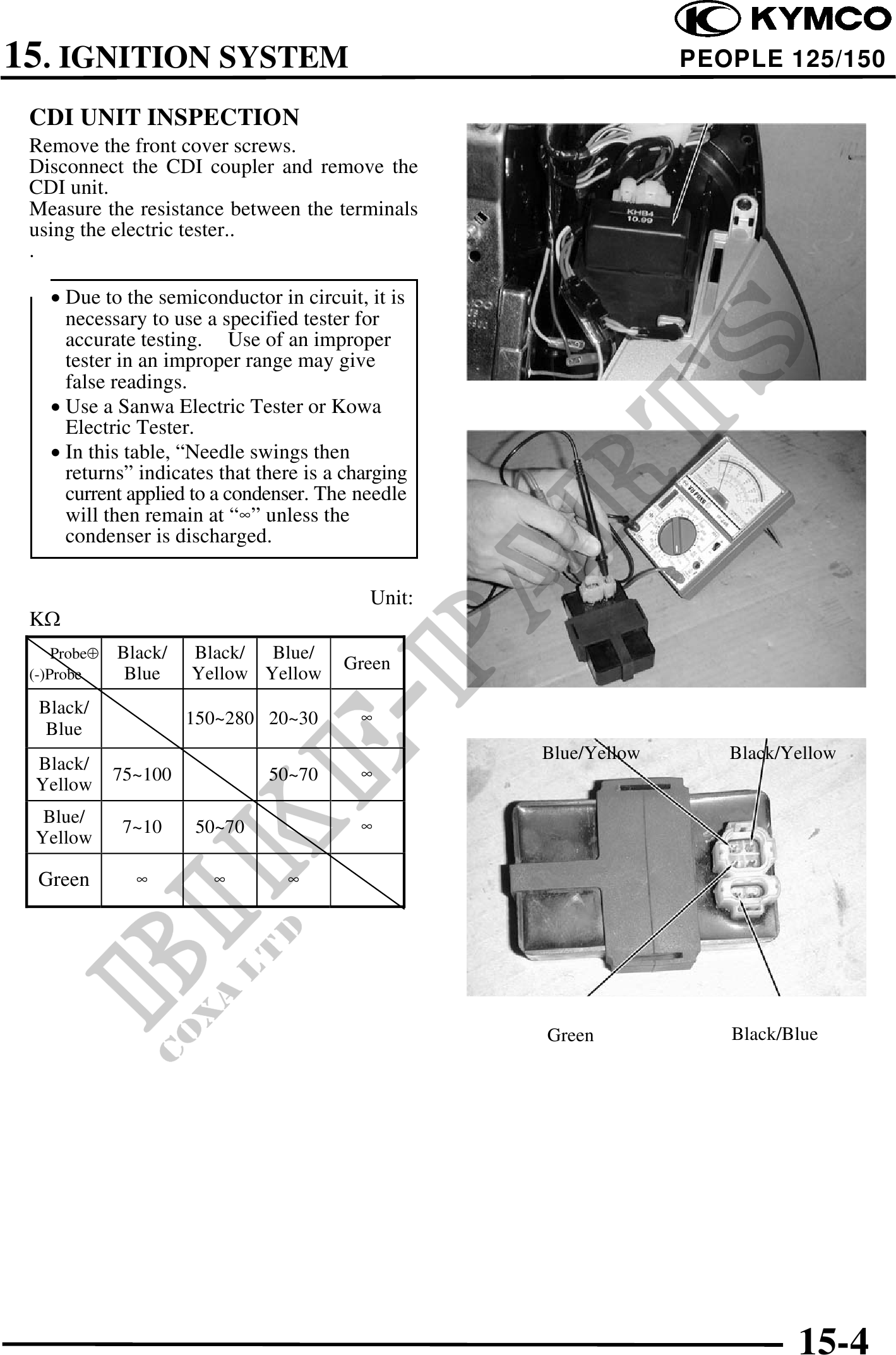

15. IGNITION SYSTEM PEOPLE 125/150
CDI UNIT INSPECTION
Remove the front cover screws. CDI Unit
Disconnect the CDI coupler and remove the
CDI unit.
Measure the resistance between the terminals
using the electric tester..
.
· Due to the semiconductor in circuit, it is
necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
· Use a Sanwa Electric Tester or Kowa
Electric Tester.
· In this table, "Needle swings then
returns" indicates that there is a charging
current applied to a condenser. The needle
will then remain at "" unless the
condenser is discharged.
Unit:
K
Probe Black/ Black/ Blue/
Green
(-)Probe Blue Yellow Yellow
Black/
Blue
150~280 20~30
Blue/Yellow Black/Yellow
Black/
Yellow
75~100 50~70
Blue/
Yellow
7~10 50~70
Green
Green Black/Blue
15-4
