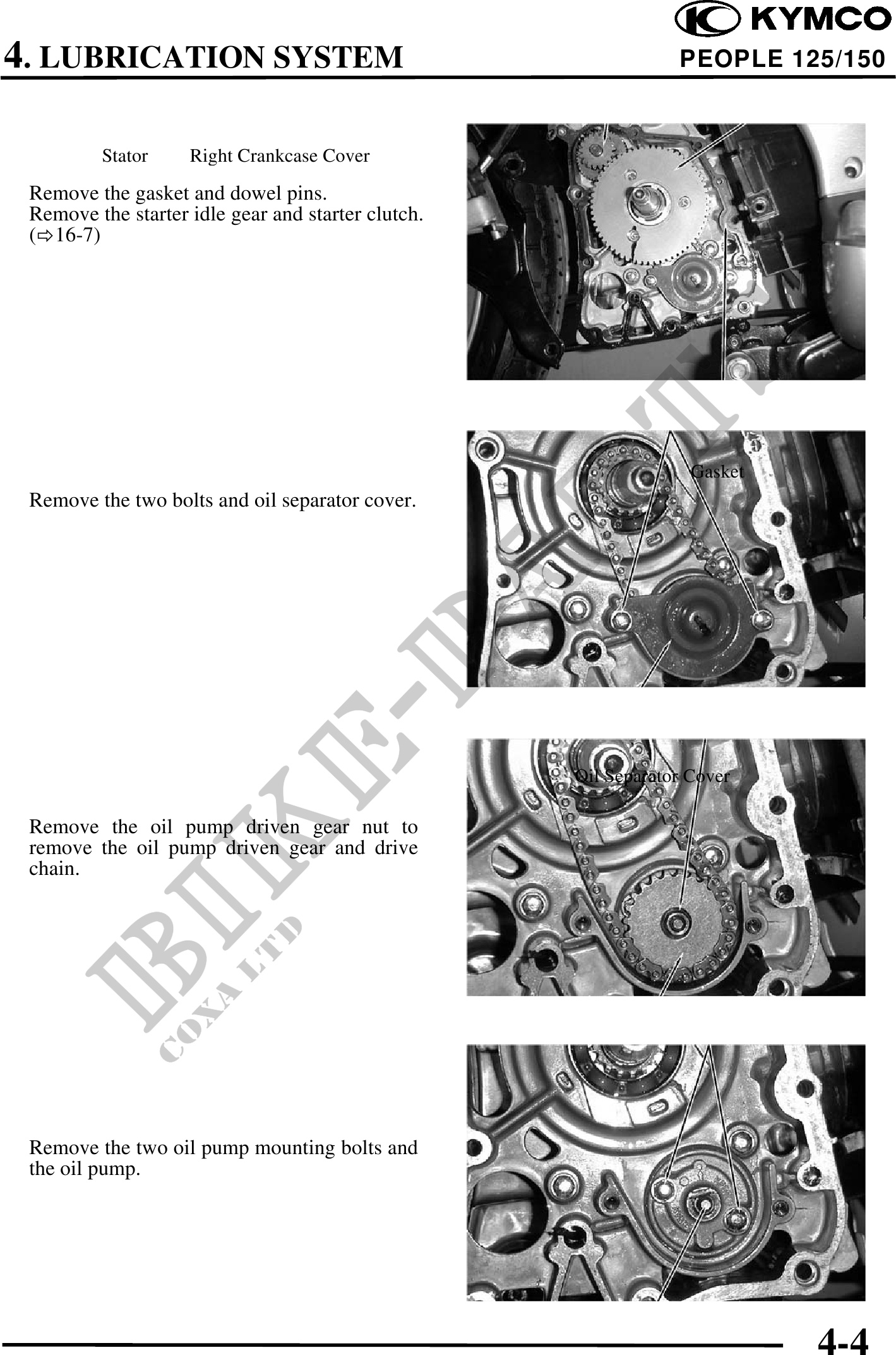

4. LUBRICATION SYSTEM PEOPLE 125/150
Stator Right Crankcase Cover
Remove the gasket and dowel pins. Starter Idle Gear Starter Clutch
Remove the starter idle gear and starter clutch.
( 16-7)
Gasket
Remove the two bolts and oil separator cover. Bolts
Oil Separator Cover
Nut
Remove the oil pump driven gear nut to
remove the oil pump driven gear and drive
chain.
Oil Pump Driven Gear
Bolts
Remove the two oil pump mounting bolts and
the oil pump.
4-4
