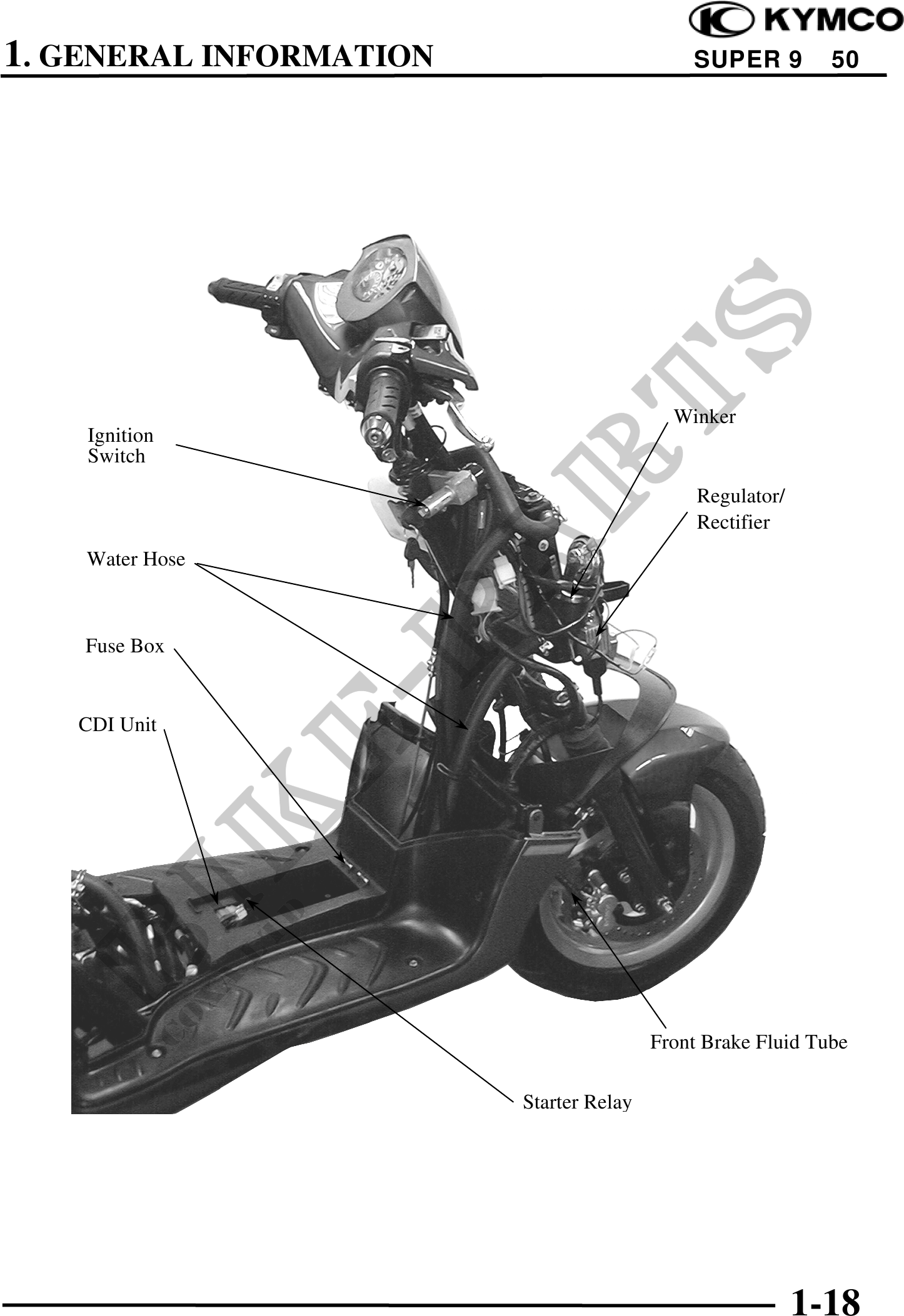

          1. GENERAL INFORMATION                       SUPER 9         50




                                           Winker
    Ignition
    Switch
                                              Regulator/
                                              Rectifier
    Water Hose



    Fuse Box


   CDI Unit




                                         Front Brake Fluid Tube

                         Starter Relay




                                                           1-18
