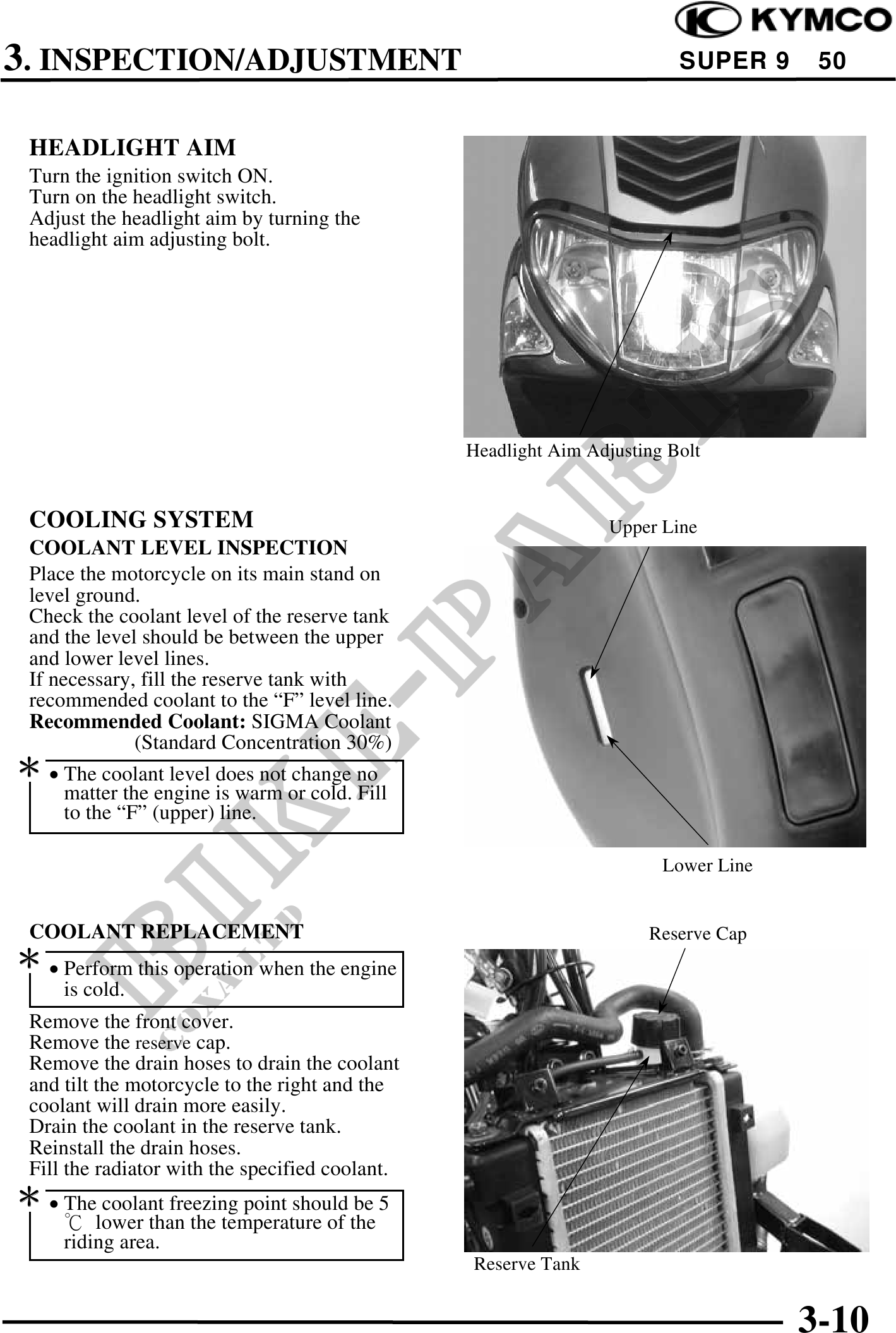

          3. INSPECTION/ADJUSTMENT                                                  SUPER 9     50


 HEADLIGHT AIM
 Turn the ignition switch ON.
 Turn on the headlight switch.
 Adjust the headlight aim by turning the
 headlight aim adjusting bolt.




                                                 Headlight Aim Adjusting Bolt


 COOLING SYSTEM                                                   Upper Line
COOLANT LEVEL INSPECTION
Place the motorcycle on its main stand on
level ground.
Check the coolant level of the reserve tank
and the level should be between the upper
and lower level lines.
If necessary, fill the reserve tank with
recommended coolant to the "F" level line.
Recommended Coolant: SIGMA Coolant
              (Standard Concentration 30%)
 · The coolant level does not change no
     matter the engine is warm or cold. Fill
     to the "F" (upper) line.

                                                                        Lower Line


 COOLANT REPLACEMENT                                                  Reserve Cap
 · Perform this operation when the engine
     is cold.
 Remove the front cover.
 Remove the reserve cap.
 Remove the drain hoses to drain the coolant
 and tilt the motorcycle to the right and the
 coolant will drain more easily.
 Drain the coolant in the reserve tank.
 Reinstall the drain hoses.
 Fill the radiator with the specified coolant.
 · The coolant freezing point should be 5
      lower than the temperature of the
     riding area.
                                                 Reserve Tank


                                                                                     3-10
