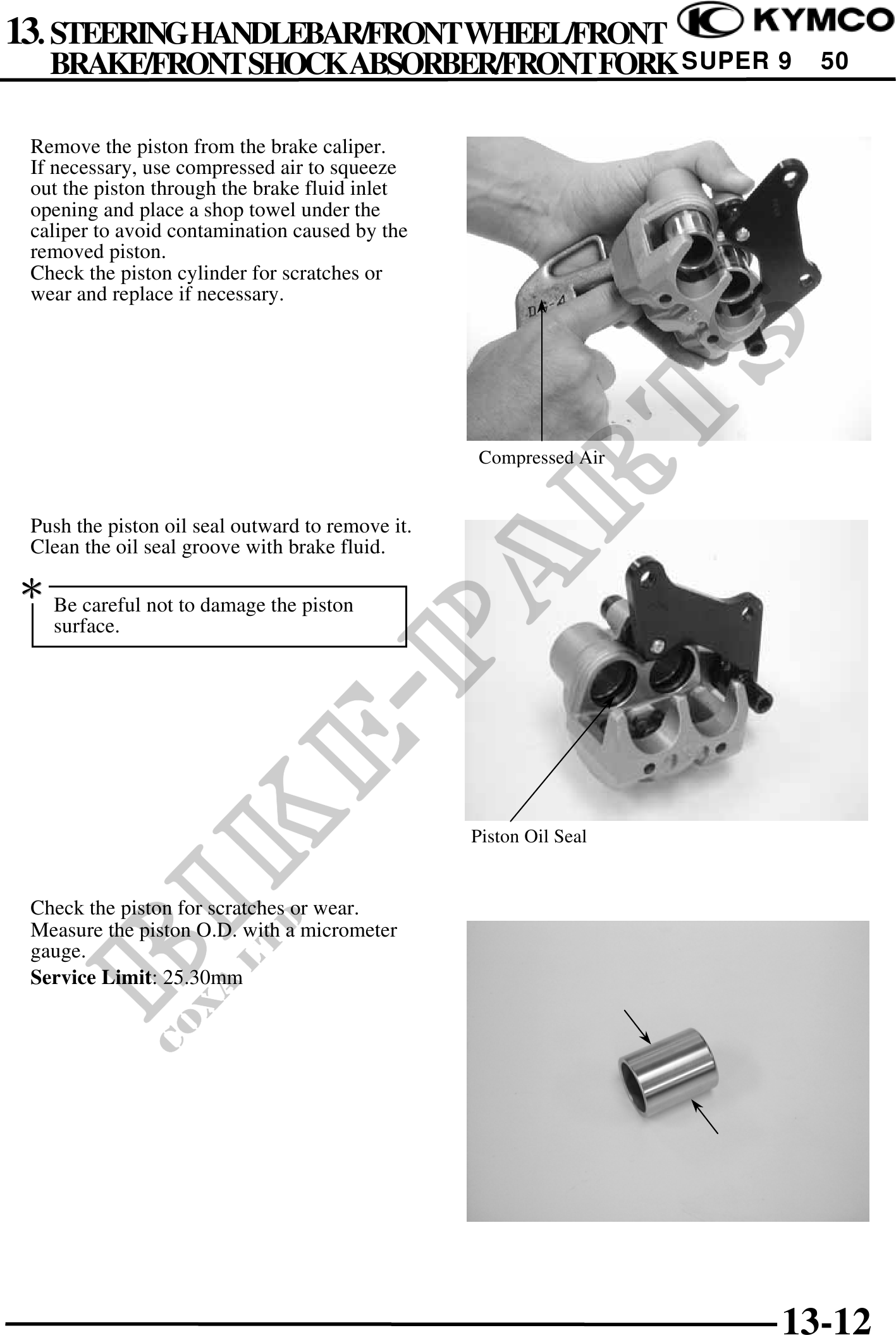

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
Remove the piston from the brake caliper.
If necessary, use compressed air to squeeze
out the piston through the brake fluid inlet
opening and place a shop towel under the
caliper to avoid contamination caused by the
removed piston.
Check the piston cylinder for scratches or
wear and replace if necessary.
Compressed Air
Push the piston oil seal outward to remove it.
Clean the oil seal groove with brake fluid.
Be careful not to damage the piston
surface.
Piston Oil Seal
Check the piston for scratches or wear.
Measure the piston O.D. with a micrometer
gauge.
Service Limit: 25.30mm
13-12
