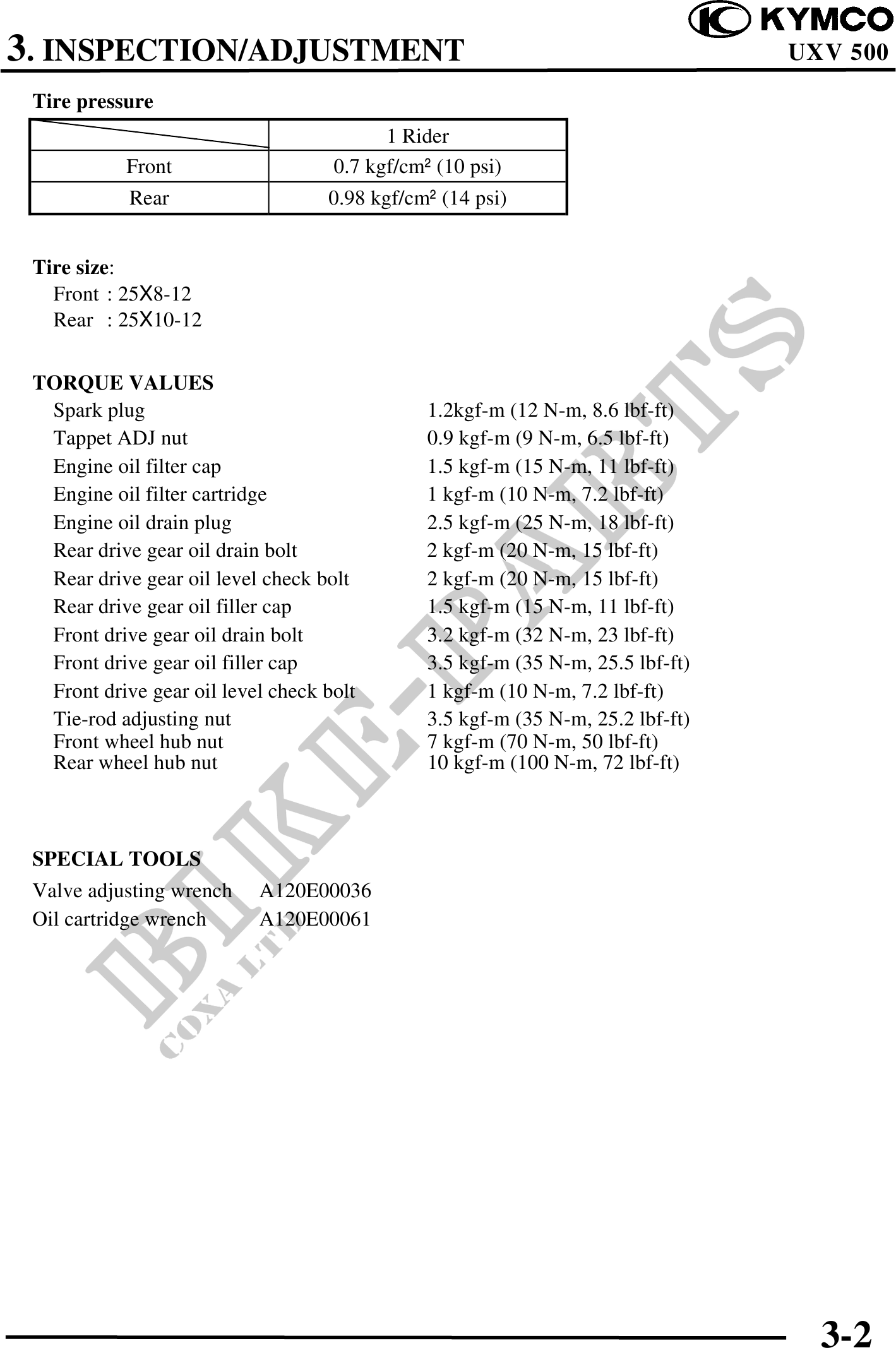

3. INSPECTION/ADJUSTMENT UXV 500
Tire pressure
1 Rider
Front 0.7 kgf/cm (10 psi)
Rear 0.98 kgf/cm (14 psi)
Tire size:
Front : 25X8-12
Rear : 25X10-12
TORQUE VALUES
Spark plug 1.2kgf-m (12 N-m, 8.6 lbf-ft)
Tappet ADJ nut 0.9 kgf-m (9 N-m, 6.5 lbf-ft)
Engine oil filter cap 1.5 kgf-m (15 N-m, 11 lbf-ft)
Engine oil filter cartridge 1 kgf-m (10 N-m, 7.2 lbf-ft)
Engine oil drain plug 2.5 kgf-m (25 N-m, 18 lbf-ft)
Rear drive gear oil drain bolt 2 kgf-m (20 N-m, 15 lbf-ft)
Rear drive gear oil level check bolt 2 kgf-m (20 N-m, 15 lbf-ft)
Rear drive gear oil filler cap 1.5 kgf-m (15 N-m, 11 lbf-ft)
Front drive gear oil drain bolt 3.2 kgf-m (32 N-m, 23 lbf-ft)
Front drive gear oil filler cap 3.5 kgf-m (35 N-m, 25.5 lbf-ft)
Front drive gear oil level check bolt 1 kgf-m (10 N-m, 7.2 lbf-ft)
Tie-rod adjusting nut 3.5 kgf-m (35 N-m, 25.2 lbf-ft)
Front wheel hub nut 7 kgf-m (70 N-m, 50 lbf-ft)
Rear wheel hub nut 10 kgf-m (100 N-m, 72 lbf-ft)
SPECIAL TOOLS
Valve adjusting wrench A120E00036
Oil cartridge wrench A120E00061
3-2
