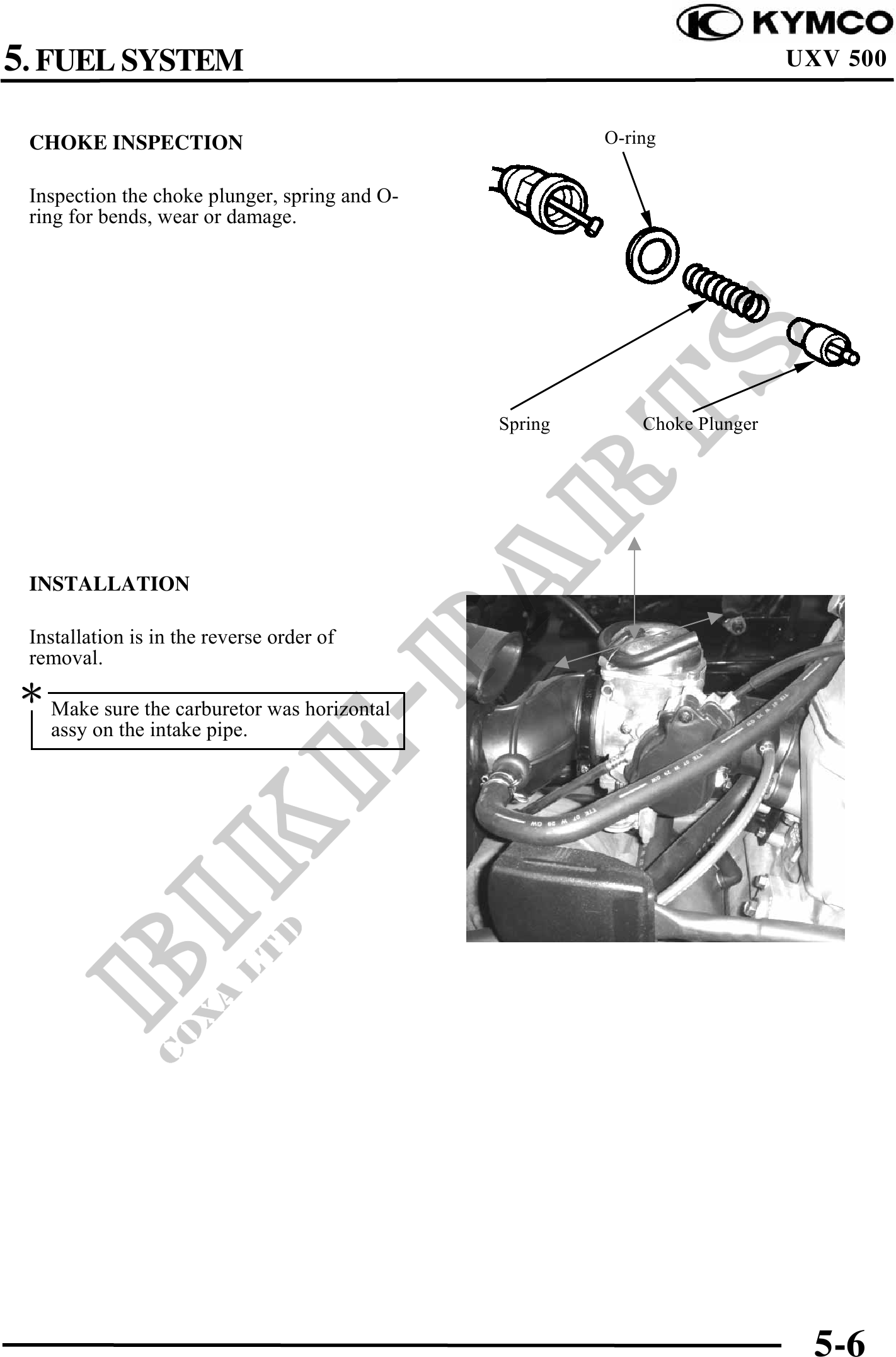

          5. FUEL SYSTEM                                                              UXV 500


 CHOKE INSPECTION                                       O-ring


 Inspection the choke plunger, spring and O-
 ring for bends, wear or damage.




                                               Spring       Choke Plunger




 INSTALLATION

 Installation is in the reverse order of
 removal.
 Make sure the carburetor was horizontal
   assy on the intake pipe.




                                                                             5-6
