          5. FUEL SYSTEM                                                                 UXV 500

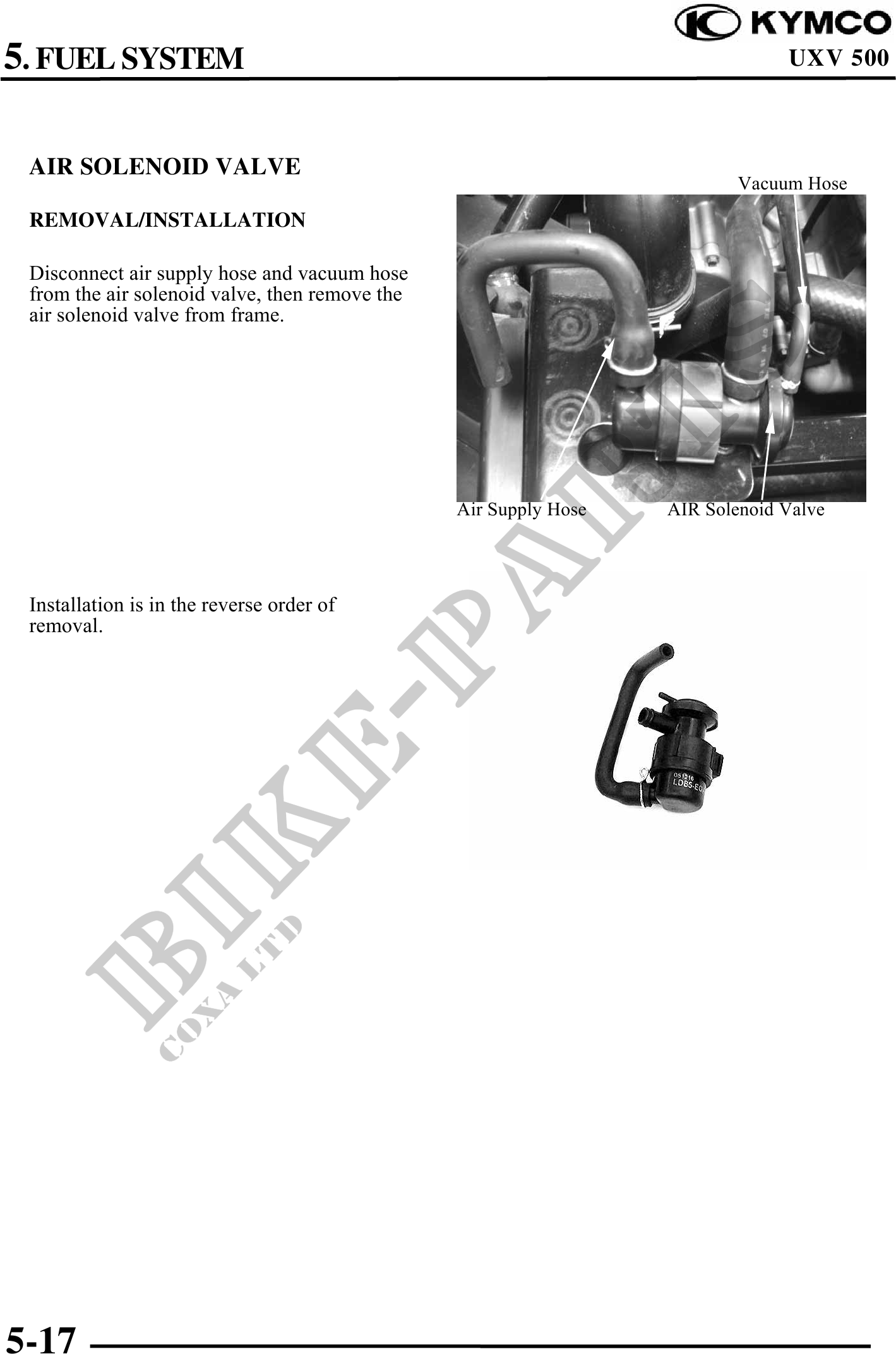

 AIR SOLENOID VALVE
                                                                          Vacuum Hose
 REMOVAL/INSTALLATION

 Disconnect air supply hose and vacuum hose
 from the air solenoid valve, then remove the
 air solenoid valve from frame.




                                                Air Supply Hose   AIR Solenoid Valve



 Installation is in the reverse order of
 removal.




5-17
