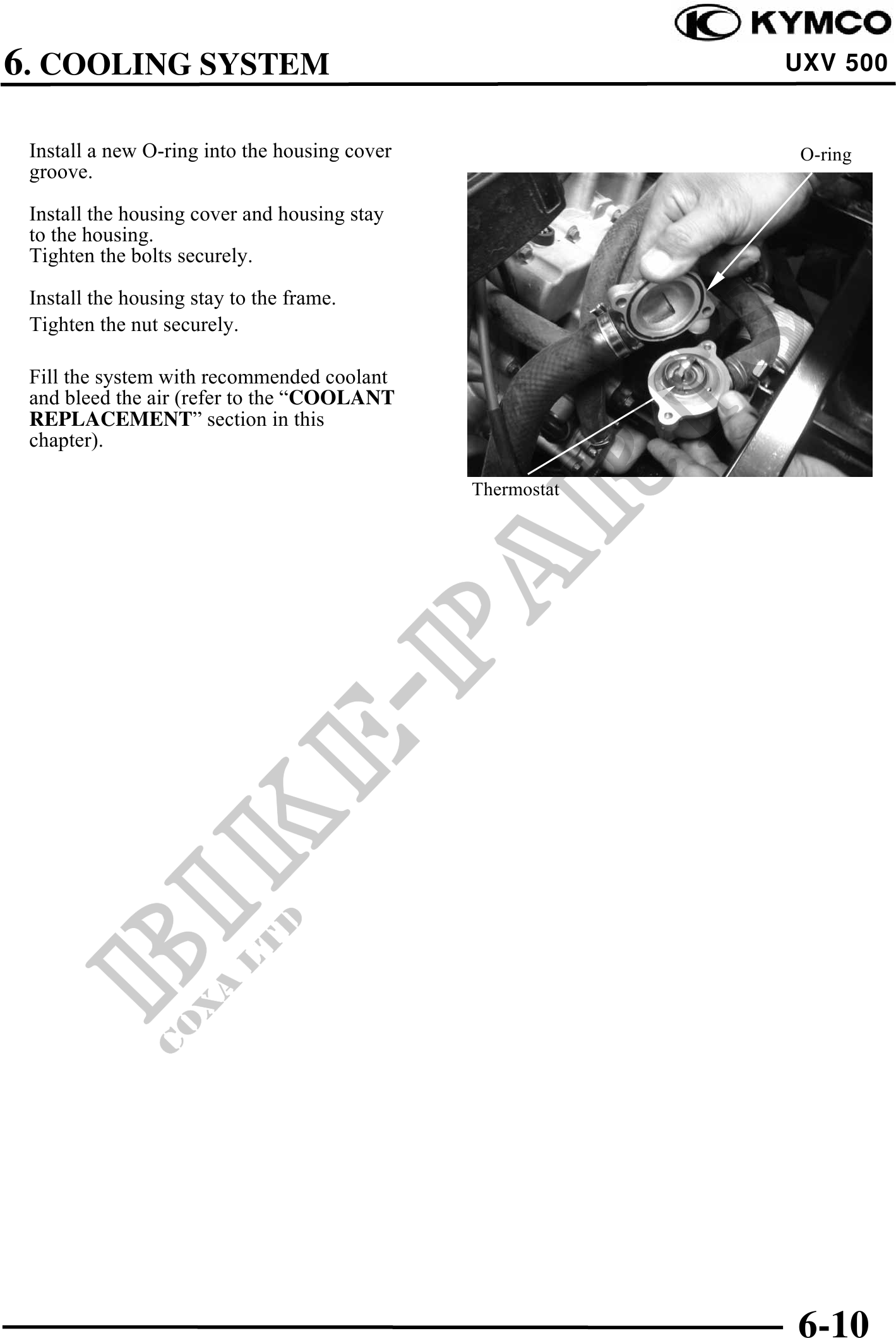

          6. COOLING SYSTEM                                           UXV 500


 Install a new O-ring into the housing cover                 O-ring
 groove.

 Install the housing cover and housing stay
 to the housing.
 Tighten the bolts securely.

 Install the housing stay to the frame.
 Tighten the nut securely.

 Fill the system with recommended coolant
 and bleed the air (refer to the "COOLANT
 REPLACEMENT" section in this
 chapter).

                                               Thermostat




                                                            6-10
