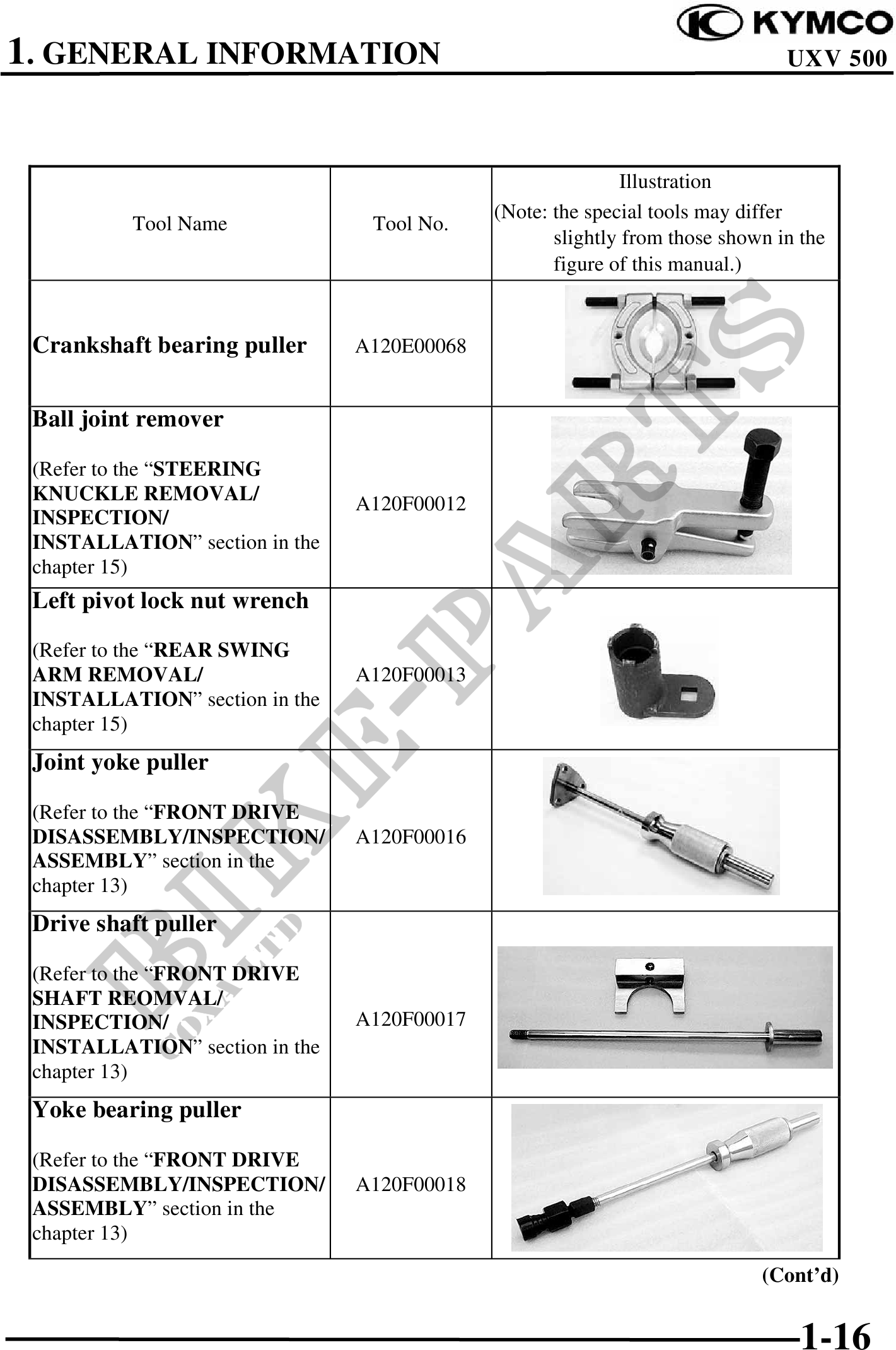

1. GENERAL INFORMATION UXV 500
Illustration
(Note: the special tools may differ
Tool Name Tool No.
slightly from those shown in the
figure of this manual.)
Crankshaft bearing puller A120E00068
Ball joint remover
(Refer to the "STEERING
KNUCKLE REMOVAL/
A120F00012
INSPECTION/
INSTALLATION" section in the
chapter 15)
Left pivot lock nut wrench
(Refer to the "REAR SWING
ARM REMOVAL/ A120F00013
INSTALLATION" section in the
chapter 15)
Joint yoke puller
(Refer to the "FRONT DRIVE
DISASSEMBLY/INSPECTION/ A120F00016
ASSEMBLY" section in the
chapter 13)
Drive shaft puller
(Refer to the "FRONT DRIVE
SHAFT REOMVAL/
INSPECTION/ A120F00017
INSTALLATION" section in the
chapter 13)
Yoke bearing puller
(Refer to the "FRONT DRIVE
DISASSEMBLY/INSPECTION/ A120F00018
ASSEMBLY" section in the
chapter 13)
(Cont'd)
1-16
