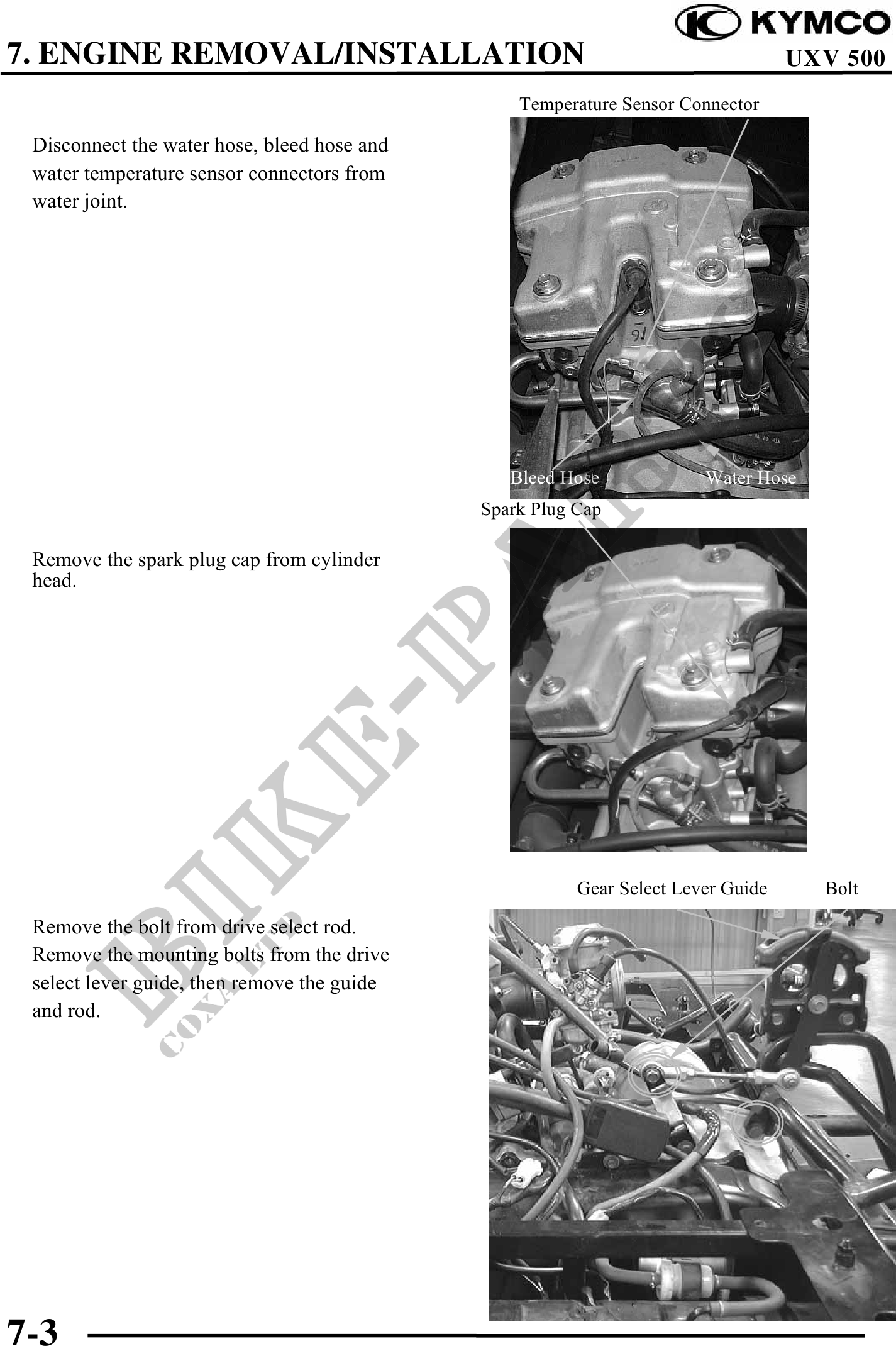

          7. ENGINE REMOVAL/INSTALLATION                                                    UXV 500
                                                 Temperature Sensor Connector

 Disconnect the water hose, bleed hose and
 water temperature sensor connectors from
 water joint.




                                                Bleed Hose             Water Hose
                                             Spark Plug Cap

 Remove the spark plug cap from cylinder
 head.




                                                        Gear Select Lever Guide     Bolt

 Remove the bolt from drive select rod.
 Remove the mounting bolts from the drive
 select lever guide, then remove the guide
 and rod.




7-3
