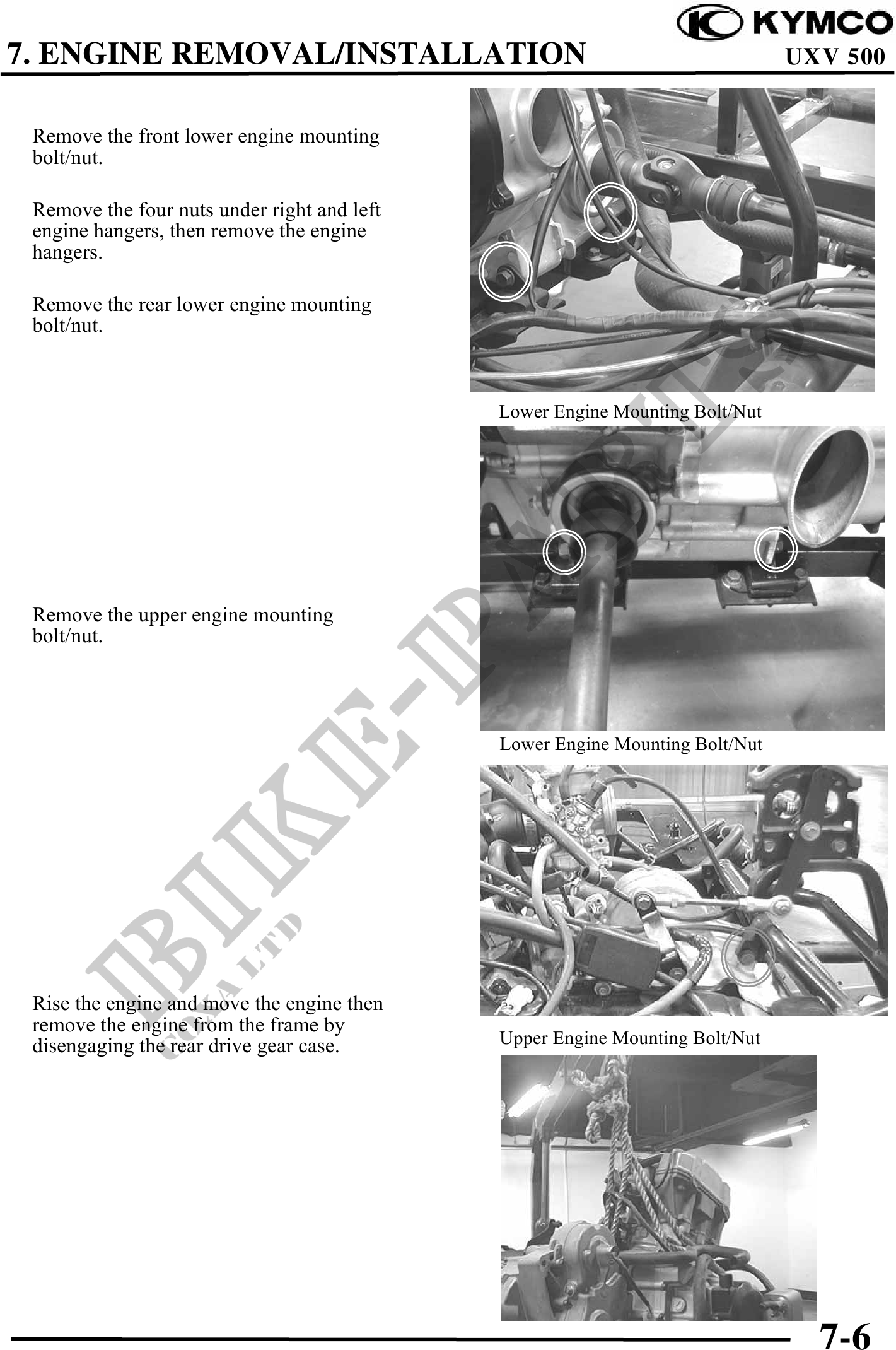

          7. ENGINE REMOVAL/INSTALLATION                                                UXV 500


 Remove the front lower engine mounting
 bolt/nut.

 Remove the four nuts under right and left
 engine hangers, then remove the engine
 hangers.

 Remove the rear lower engine mounting
 bolt/nut.



                                             Lower Engine Mounting Bolt/Nut




 Remove the upper engine mounting
 bolt/nut.




                                             Lower Engine Mounting Bolt/Nut




 Rise the engine and move the engine then
 remove the engine from the frame by
 disengaging the rear drive gear case.       Upper Engine Mounting Bolt/Nut




                                                                                7-6
