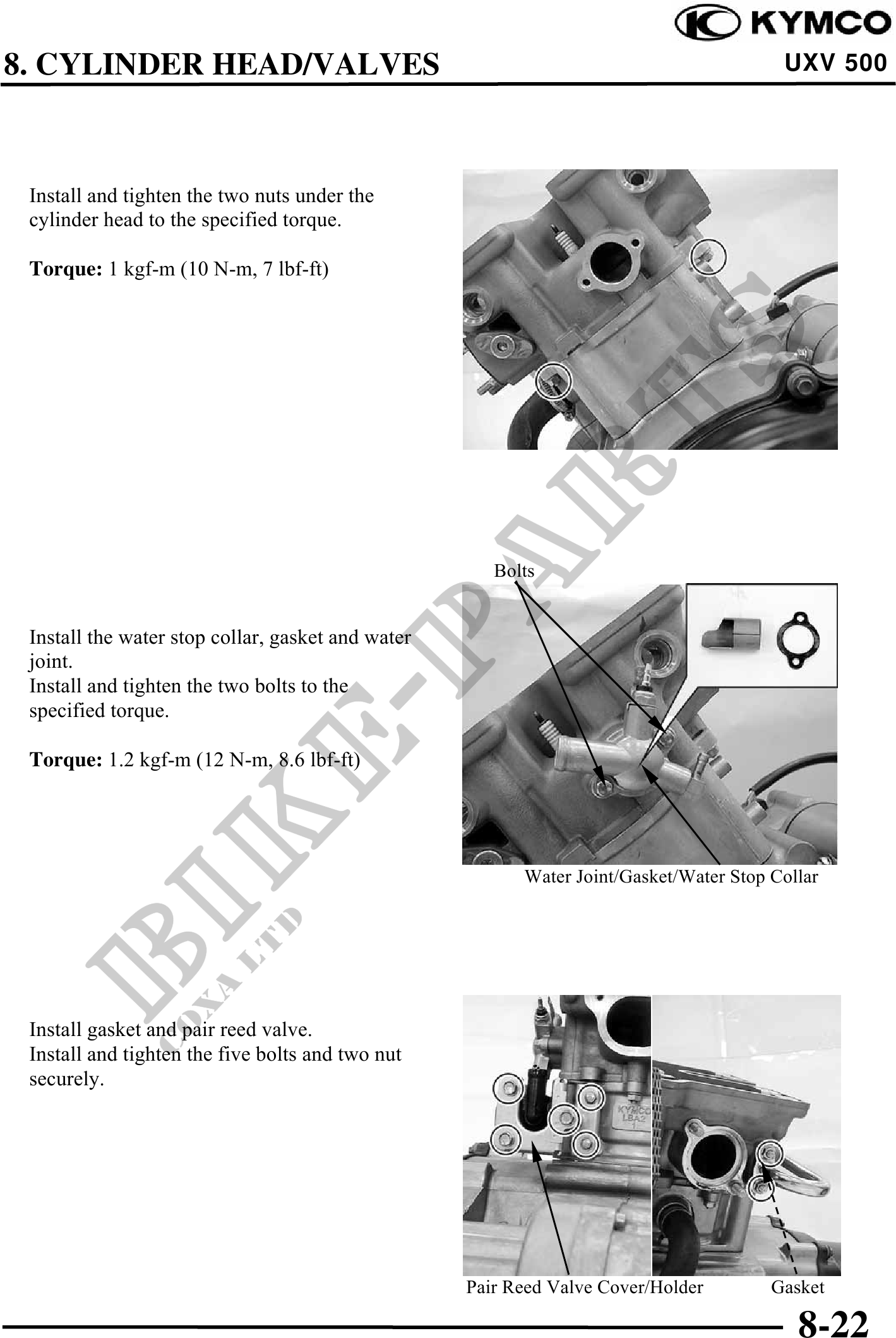

          8. CYLINDER HEAD/VALVES                                                                 UXV 500




 Install and tighten the two nuts under the
 cylinder head to the specified torque.

 Torque: 1 kgf-m (10 N-m, 7 lbf-ft)




                                                      Bolts


 Install the water stop collar, gasket and water
 joint.
 Install and tighten the two bolts to the
 specified torque.

 Torque: 1.2 kgf-m (12 N-m, 8.6 lbf-ft)




                                                         Water Joint/Gasket/Water Stop Collar




 Install gasket and pair reed valve.
 Install and tighten the five bolts and two nut
 securely.




                                                   Pair Reed Valve Cover/Holder        Gasket
