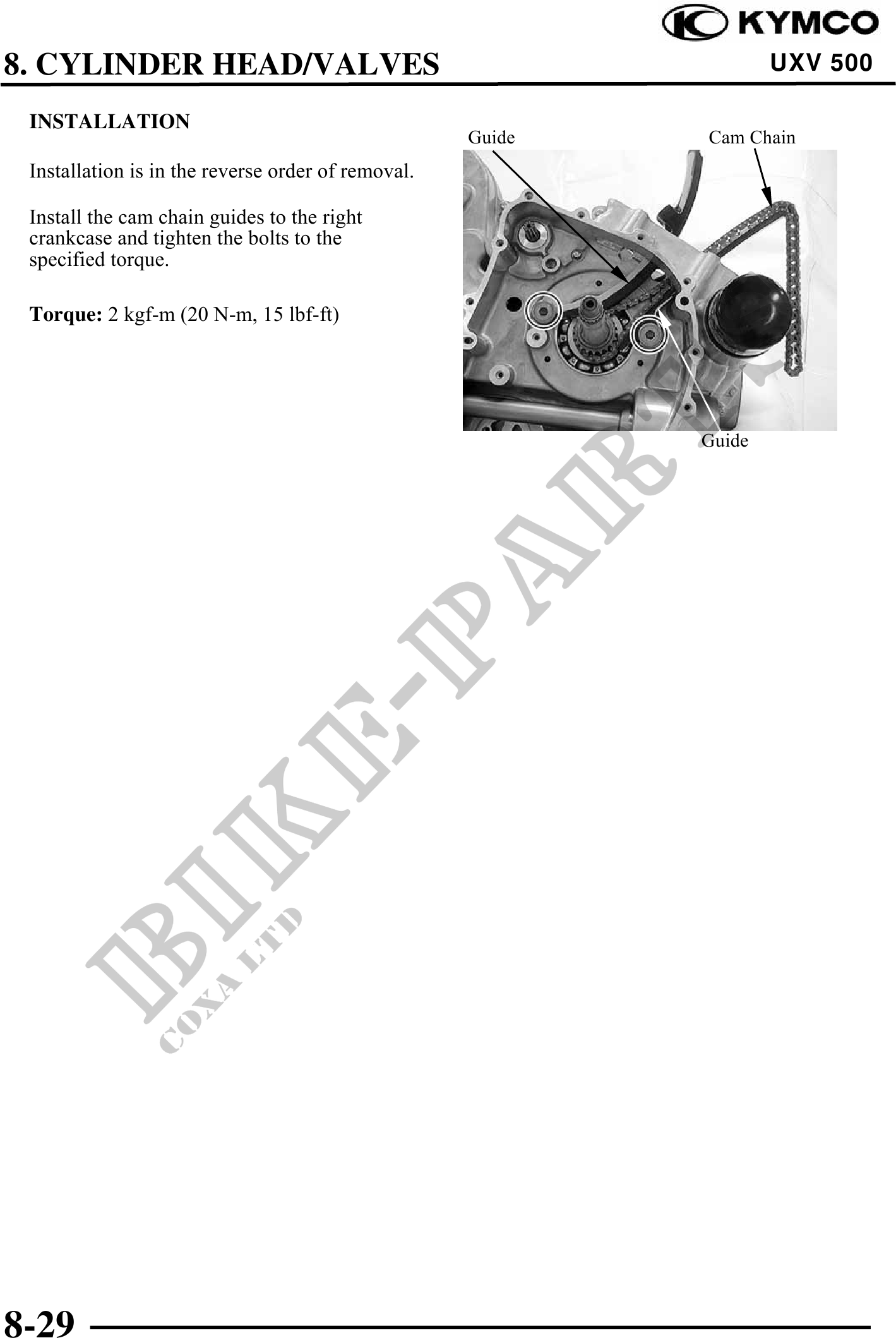

          8. CYLINDER HEAD/VALVES                                             UXV 500

 INSTALLATION
                                                    Guide   Cam Chain
 Installation is in the reverse order of removal.

 Install the cam chain guides to the right
 crankcase and tighten the bolts to the
 specified torque.

 Torque: 2 kgf-m (20 N-m, 15 lbf-ft)




                                                            Guide




8-29
