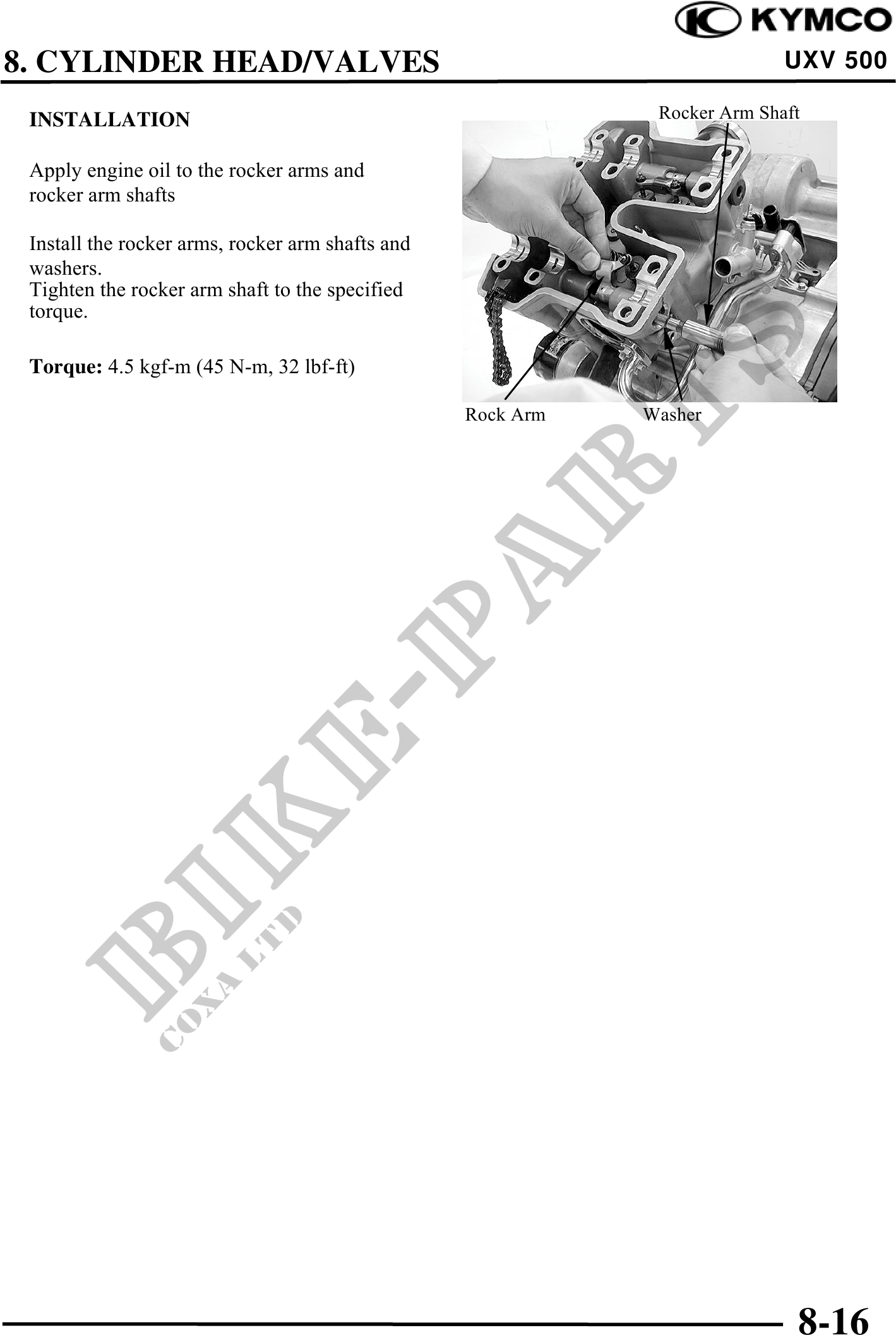

          8. CYLINDER HEAD/VALVES                                                     UXV 500

 INSTALLATION                                                 Rocker Arm Shaft


 Apply engine oil to the rocker arms and
 rocker arm shafts

 Install the rocker arms, rocker arm shafts and
 washers.
 Tighten the rocker arm shaft to the specified
 torque.

 Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)

                                                  Rock Arm   Washer




                                                                             8-16
