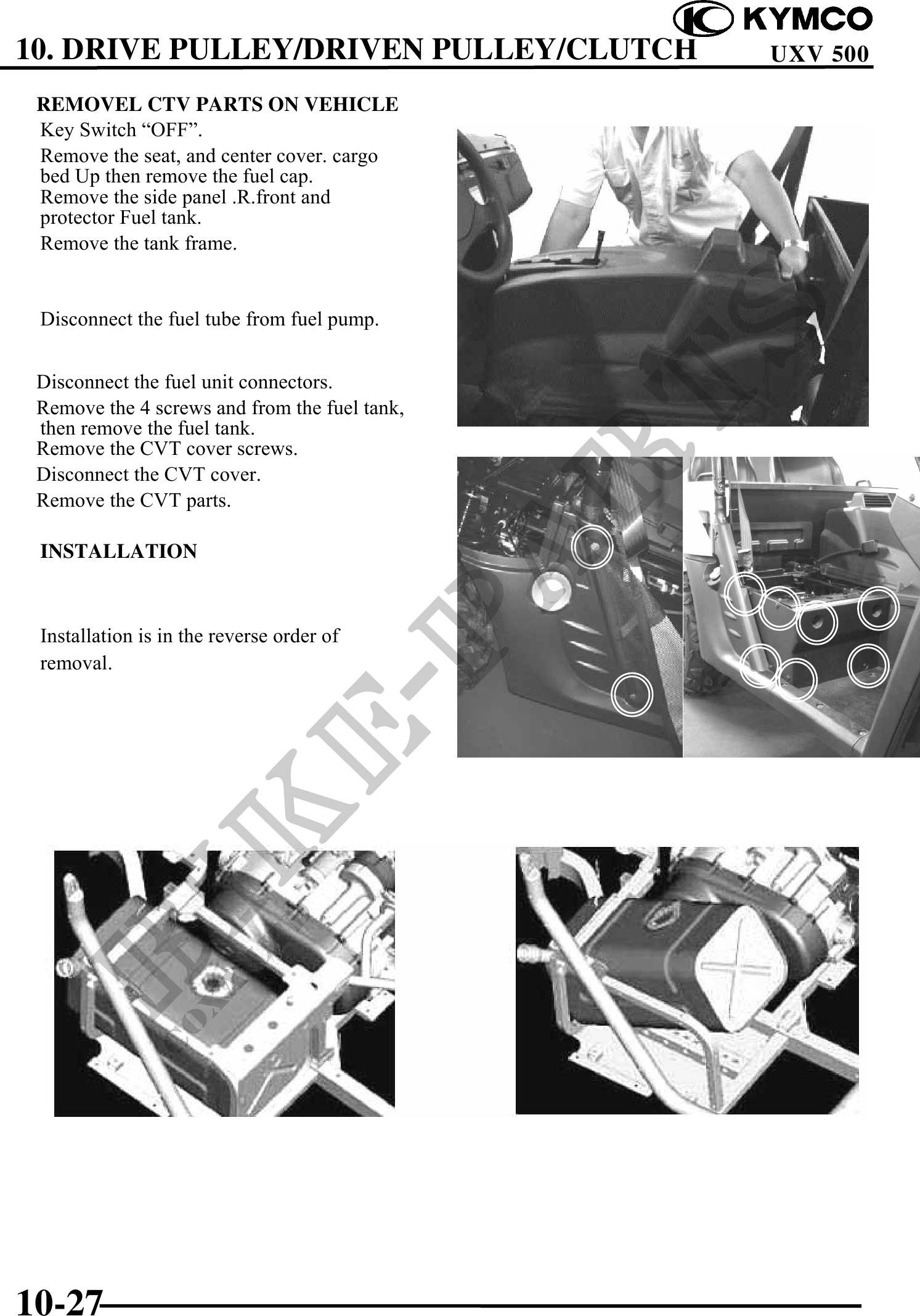

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH UXV 500
REMOVEL CTV PARTS ON VEHICLE
Key Switch "OFF".
Remove the seat, and center cover. cargo
bed Up then remove the fuel cap.
Remove the side panel .R.front and
protector Fuel tank.
Remove the tank frame.
Disconnect the fuel tube from fuel pump.
Disconnect the fuel unit connectors.
Remove the 4 screws and from the fuel tank,
then remove the fuel tank.
Remove the CVT cover screws.
Disconnect the CVT cover.
Remove the CVT parts.
INSTALLATION
Installation is in the reverse order of
removal.
10-27
