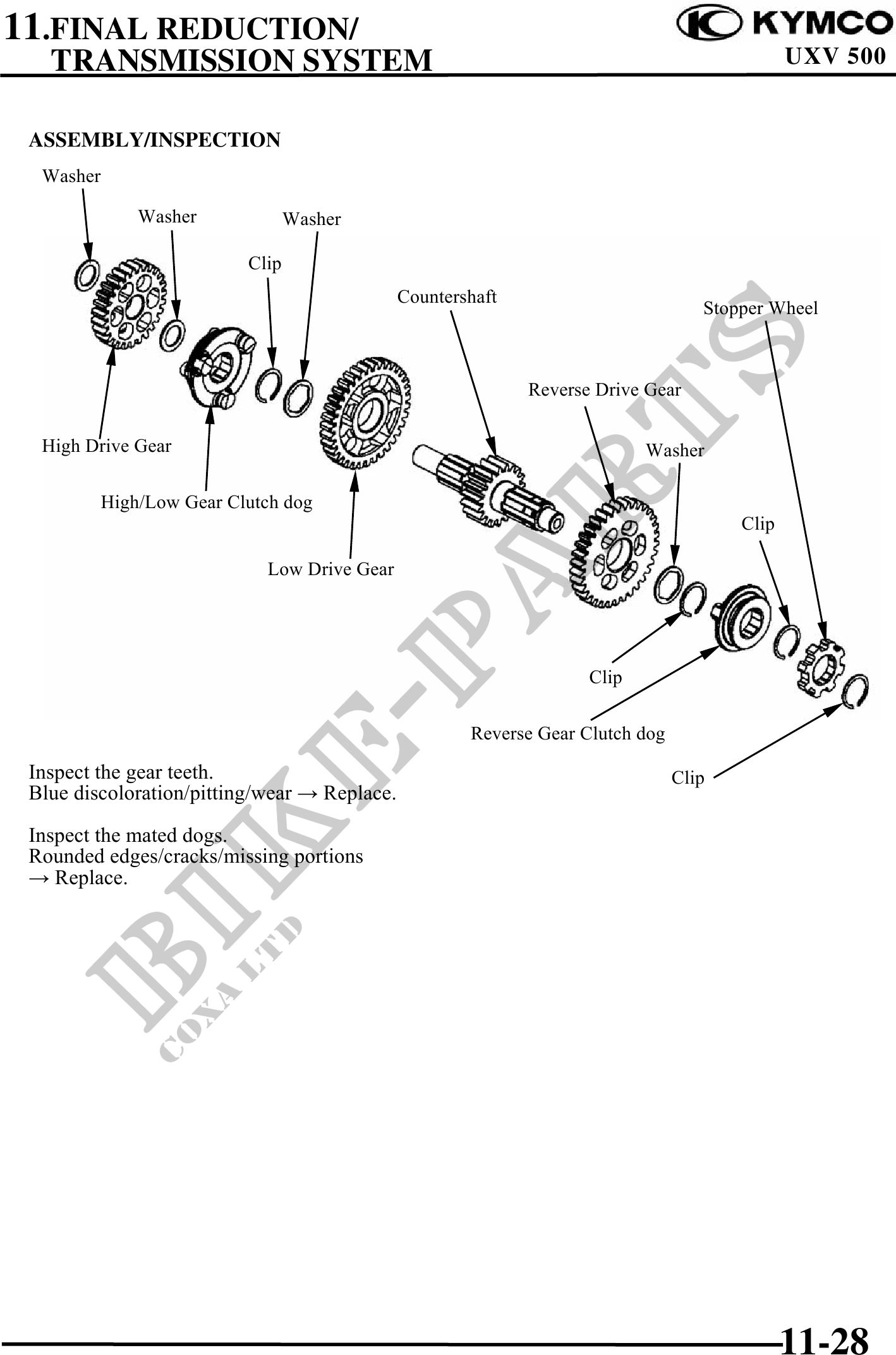

          11.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                                        UXV 500


 ASSEMBLY/INSPECTION
  Washer

               Washer             Washer

                           Clip
                                              Countershaft
                                                                                   Stopper Wheel



                                                             Reverse Drive Gear

  High Drive Gear                                                          Washer

           High/Low Gear Clutch dog
                                                                                       Clip

                             Low Drive Gear




                                                                    Clip

                                                      Reverse Gear Clutch dog

 Inspect the gear teeth.                                                        Clip
 Blue discoloration/pitting/wear  Replace.

 Inspect the mated dogs.
 Rounded edges/cracks/missing portions
  Replace.




                                                                                              11-28
