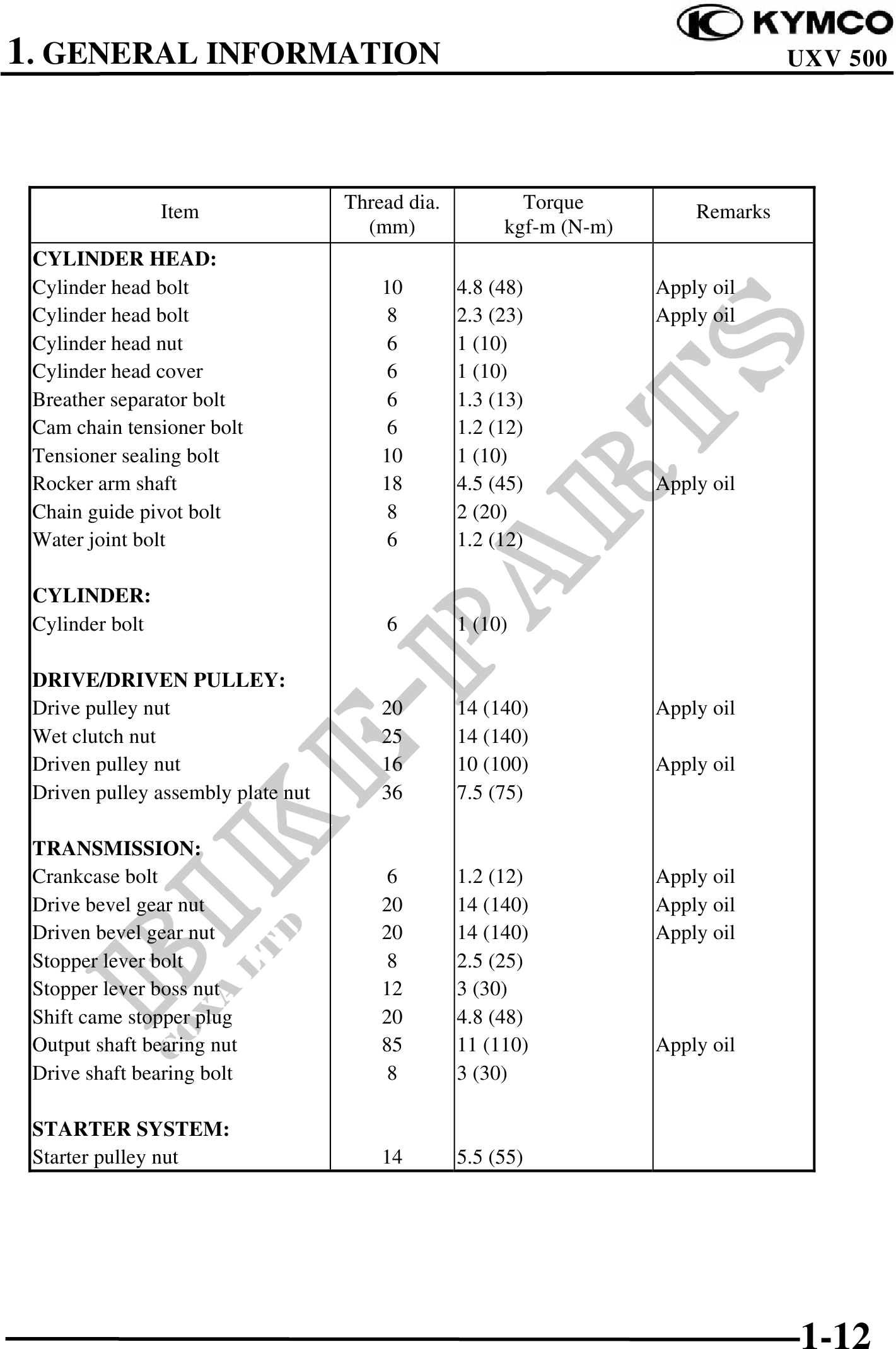

          1. GENERAL INFORMATION                                                             UXV 500




                 Item               Thread dia.          Torque          Remarks
                                      (mm)             kgf-m (N-m)
 CYLINDER HEAD:
 Cylinder head bolt                     10        4.8 (48)           Apply oil
 Cylinder head bolt                      8        2.3 (23)           Apply oil
 Cylinder head nut                       6        1 (10)
 Cylinder head cover                     6        1 (10)
 Breather separator bolt                 6        1.3 (13)
 Cam chain tensioner bolt                6        1.2 (12)
 Tensioner sealing bolt                 10        1 (10)
 Rocker arm shaft                       18        4.5 (45)           Apply oil
 Chain guide pivot bolt                  8        2 (20)
 Water joint bolt                        6        1.2 (12)

 CYLINDER:
 Cylinder bolt                          6         1 (10)

 DRIVE/DRIVEN PULLEY:
 Drive pulley nut                       20        14 (140)           Apply oil
 Wet clutch nut                         25        14 (140)
 Driven pulley nut                      16        10 (100)           Apply oil
 Driven pulley assembly plate nut       36        7.5 (75)

 TRANSMISSION:
 Crankcase bolt                          6        1.2 (12)           Apply oil
 Drive bevel gear nut                   20        14 (140)           Apply oil
 Driven bevel gear nut                  20        14 (140)           Apply oil
 Stopper lever bolt                      8        2.5 (25)
 Stopper lever boss nut                 12        3 (30)
 Shift came stopper plug                20        4.8 (48)
 Output shaft bearing nut               85        11 (110)           Apply oil
 Drive shaft bearing bolt                8        3 (30)

 STARTER SYSTEM:
 Starter pulley nut                     14        5.5 (55)




                                                                                   1-12
