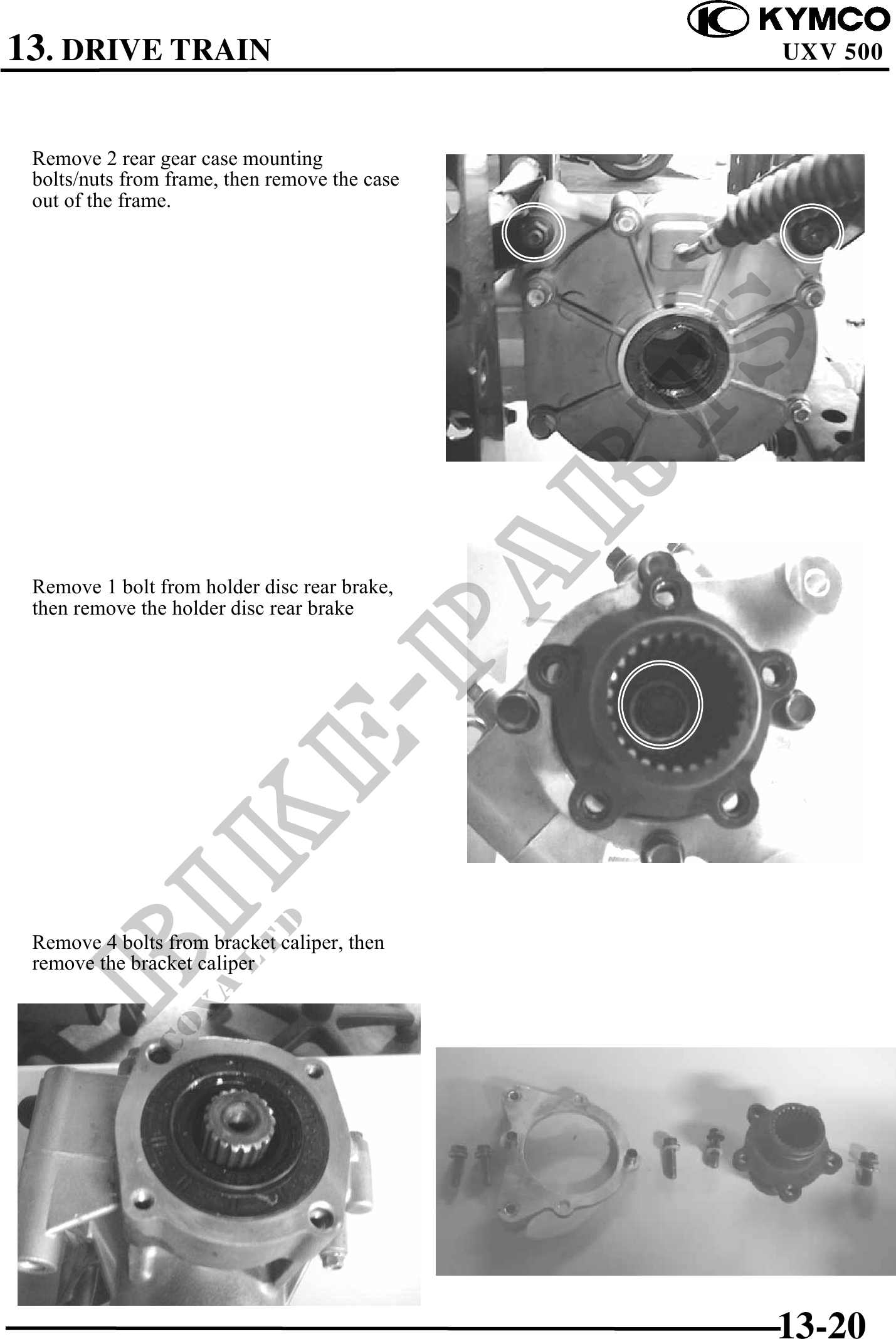

          13. DRIVE TRAIN                                UXV 500



 Remove 2 rear gear case mounting
 bolts/nuts from frame, then remove the case
 out of the frame.




 Remove 1 bolt from holder disc rear brake,
 then remove the holder disc rear brake




 Remove 4 bolts from bracket caliper, then
 remove the bracket caliper




                                               13-20
