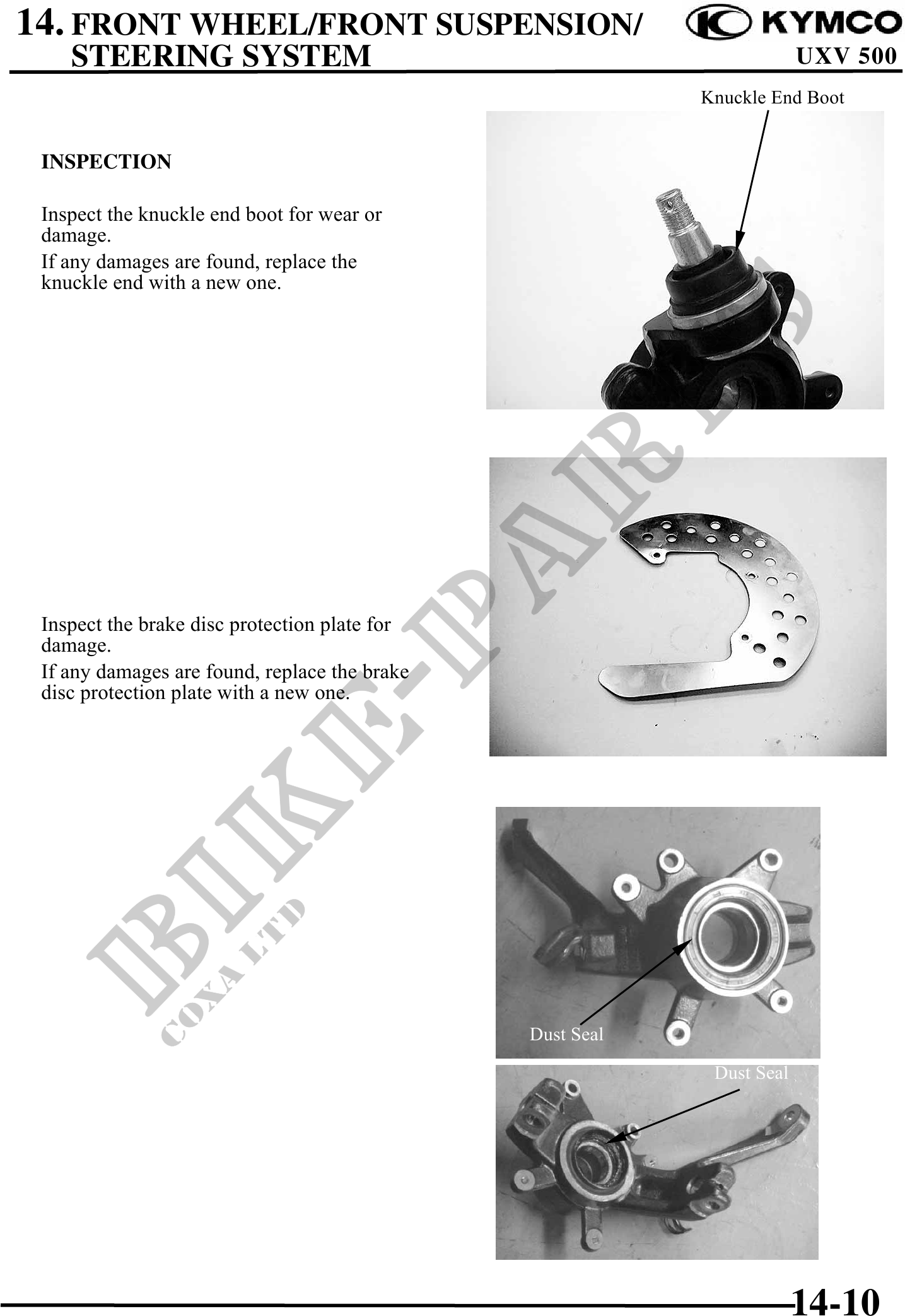

          14. FRONT WHEEL/FRONT SUSPENSION/
    STEERING SYSTEM                                                                UXV 500
                                                                      Knuckle End Boot


 INSPECTION

 Inspect the knuckle end boot for wear or
 damage.
 If any damages are found, replace the         Inspect the dust seal lips for wear or
 knuckle end with a new one.                   damage.
                                               If any damages are found, replace the dust
                                               seal with a new one.




 Inspect the brake disc protection plate for
 damage.
 If any damages are found, replace the brake
 disc protection plate with a new one.




                                                 Dust Seal
                                                                       Dust Seal




                                                                                   14-10
